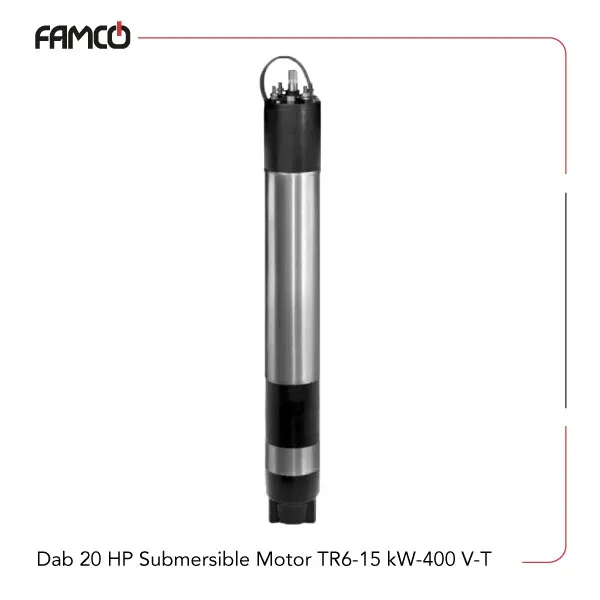

Dab 20 HP Submersible Motor TR6-15 kW-400 V-T

Dab 20 HP Submersible Motor TR6-15 kW-400 V-T Specifications

Dab submersible motor TR6-15 kW-400 V-T delivers 20 kW (15 HP) of power, making it suitable for demanding applications. It draws 29 amperes and has a starting current ratio of 3.8, allowing smooth startup. The motor operates at 3000 rpm, providing efficient performance for a variety of mechanical tasks. It features a NEMA 6-inch flanging for secure and standardized mounting. The motor is rated IP68, offering strong protection against dust and water ingress, making it well suited for harsh or submerged environments. Cooling is maintained at a flow speed of 0.5 meters per second, supporting stable operating temperatures during continuous use. This Dab motor can handle power supply variations of +6% to –10% and supports up to 15 starts per hour, making it suitable for intermittent operation. It is designed to operate at depths up to 300 meters and withstand pressures up to 60 bar, making it ideal for underwater or high-pressure environments.

Dab 20 HP Submersible Motor TR6-15 kW-400 V-T Applications

• Underwater pumping systems
• Industrial machinery requiring high power
• High-temperature processing equipment
• Heavy-duty manufacturing operations

Dab 20 HP Submersible Motor TR6-15 kW-400 V-T Benefits

• High durability with IP68 protection class
• Reliable performance at high speeds
• Suitable for deep underwater applications
• Flexible operation with adjustable power tolerance

Dab 20 HP Submersible Motor TR6-15 kW-400 V-T Price List
