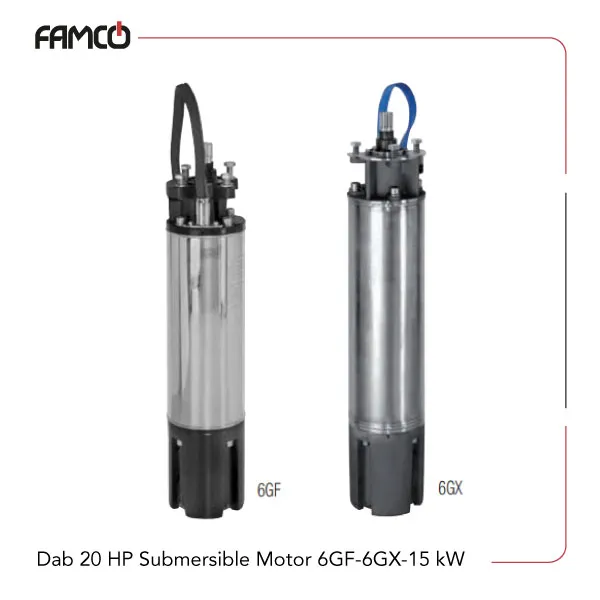

Dab 20 HP Submersible Motor 6GF/6GX-15 kW Specifications
This motor has a power output of 15 kW (20 HP) and supports demanding operational requirements. It operates at a speed of 3000 rpm and has a starting current ratio of 4.8. The power consumption during operation is approximately 17,960 watts. The motor supports up to 25 starts per hour, which suits applications with frequent start cycles. A NEMA 6-inch flange supports secure mounting. The insulation class is F, which offers strong thermal resistance, and the IP68 protection class provides full protection against dust and water ingress, suitable for harsh environments. Cooling requires a minimum flow speed of 0.3 meters per second at an ambient temperature of 35°C to maintain controlled operating conditions in these Dab submersible motor series.
| Model | 230V | 400V | 415V |
| Current (A) | 56 | 33.4 | 34.2 |
| Starting Current Ratio | 4.8 | 4.8 | 5.0 |
| Power (kW) | 15 | ||
| Power (HP) | 20 | ||
| P1 (W) | 17960 | ||
| Speed (rpm) | 3000 | ||
| Flanging | NEMA 6″ | ||
| Insulation Class | F | ||
| Protection Class | IP68 | ||
| Cooling Flow Speed | min. 0,3 m/s 35 °C | ||
| Power Supply Tolerance | +6%/-10% | ||
| Max Starts | 25/h | ||
| Max Operating Depth | 300 m | ||
| Horizontal Operation | 5,5 HP – 50 HP | ||
Dab 20 HP Submersible Motor 6GF/6GX-15 kW Applications
- Submersible pumps for water extraction
- Industrial machinery requiring high power
- Marine equipment and underwater devices
- Heavy-duty automation systems
Dab 20 HP Submersible Motor 6GF/6GX-15 kW Benefits
- High durability with IP68 protection
- Reliable performance at various depths
- Efficient cooling system for continuous operation
- Flexible operation with wide power range
Dab 20 HP Submersible Motor 6GF/6GX-15 kW Price List
| No. | Name | Price |
| 1 | Dab 20 HP Submersible Motor 6GF/6GX-15 kW Price | Contact us |
