Dab 2 HP Submersible Sewage Pump FKC 80 15.4 T5 400D Specifications
This pump features a single channel impeller made of durable cast iron, designed for efficient fluid movement. It handles solids up to 100 mm in size and operates within a pH range of 6.5 to 12, making this Dab-manufactured submersible pump suitable for various liquids. The pump can work in temperatures from 0°C to 40°C and can be installed at depths up to 20 meters. Its mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, ensuring long-lasting performance. The maximum delivery head of the FKC series 80 15.4 T5 400D Dab sewage pump is 8.9 meters, with a flow rate reaching 1920 liters per minute. Powered by a 400V three-phase supply, it consumes 1.5 kW (or 2 HP). The Dab submersible pump weighs 115 kg, indicating a robust build for industrial applications.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 8.9 m |
| Max flow rate | 1920 l/min |
| Three-phase voltage | 400 V |
| Power | 1.5 kW |
| Power (HP) | 2 HP |
| Weight | 115 kg |

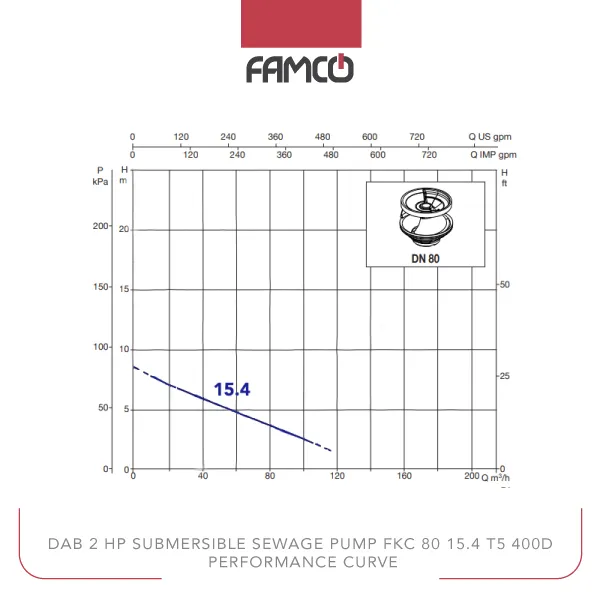

Dab 2 HP Submersible Sewage Pump FKC 80 15.4 T5 400D Performance Data
| m3 /h | 0 | 14 | 29 | 43 | 58 | 72 | 86 | 101 | 115 |
| l/min | 0 | 240 | 480 | 720 | 960 | 1200 | 1440 | 1680 | 1920 |
| Head (m) | 8.9 | 7.9 | 6.9 | 6.1 | 5.3 | 4.5 | 3.6 | 2.8 | 1.9 |
Dab 2 HP Submersible Sewage Pump FKC 80 15.4 T5 400D Applications
- Water treatment plants
- Sewage and wastewater management
- Industrial fluid transfer
- Construction site dewatering
Dab 2 HP Submersible Sewage Pump FKC 80 15.4 T5 400D Benefits
- High flow rate for efficient fluid movement
- Durable cast iron impeller withstands solids
- Reliable mechanical seals extend lifespan
- Suitable for various liquids and temperatures
Dab 2 HP Submersible Sewage Pump FKC 80 15.4 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 2 HP Submersible Sewage Pump FKC 80 15.4 T5 400D Price | Contact us |
