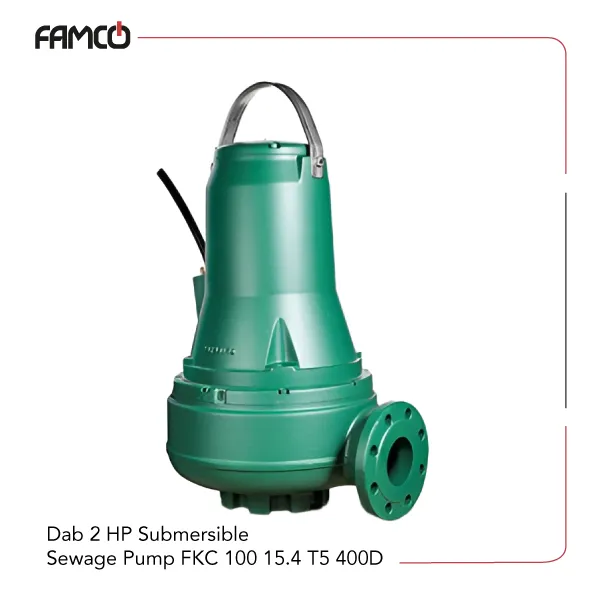

Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D

1.5 kW (2 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: DAB Pumps, Dab Sewage Pumps, Dab Submersible Pump

Overview of Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D

The Dab company has thought of everything when designing the 2 HP FKC 100 15.4 T5 400D pump. For one thing, it has used all sturdy materials in its build, such as a cast-iron impeller and high-quality seals, making it durable and suitable for various liquids with different pH levels. The pump is ideal for use in water transfer, sewage systems, and industrial processes. Its ability to operate at significant depths and handle high flow rates makes it versatile for many settings. The powerful motor ensures efficient operation, while its construction guarantees longevity and minimal maintenance. Overall, this pump is a reliable choice for demanding fluid transfer tasks.

Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D Specifications

This pump features a single channel impeller made of durable cast iron, designed to handle solids up to 100 mm. It operates efficiently within a pH range of 6.5 to 12 and can manage fluid temperatures from 0°C to 40°C. The pump can be installed at depths up to 20 meters, making it suitable for various applications. It uses high-quality SiC/SiC mechanical seals on the pump side of this Dab submersible pump and SiC/Carbon on the motor side, ensuring long-lasting performance. The maximum delivery head of the presented Dab sewage pump is a record-height of 8.9 meters, with a flow rate reaching 1800 liters per minute. Powered by a 400V three-phase system, it delivers 1.5 kW (or 2 HP) of power. The unit weighs 120 kg, indicating a robust and sturdy build for demanding environments.

Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D

Specification	Value
Impeller Type	Single channel
Solid Handling	65 – 100 mm
Fluid pH	6.5- 12
Fluid Temperature Range	from 0° to +40°C
Max installation Depth	20 m
Impeller Material	cast iron
Mechanical seal pump side	SiC/SiC
Mechanical seal motor side	SiC/Carbon
Max delivery head	8.9 m
Max flow rate	1800 l/min
Three-phase voltage	400 V
Power	1.5 kW
Power (HP)	2 HP
Weight	120 kg

Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D Performance Data

m3 /h	0	22	43	65	86	108
l/min	0	360	720	1080	1440	1800
Head (m)	8.9	7..3	6.0	4.7	3.5	2.2

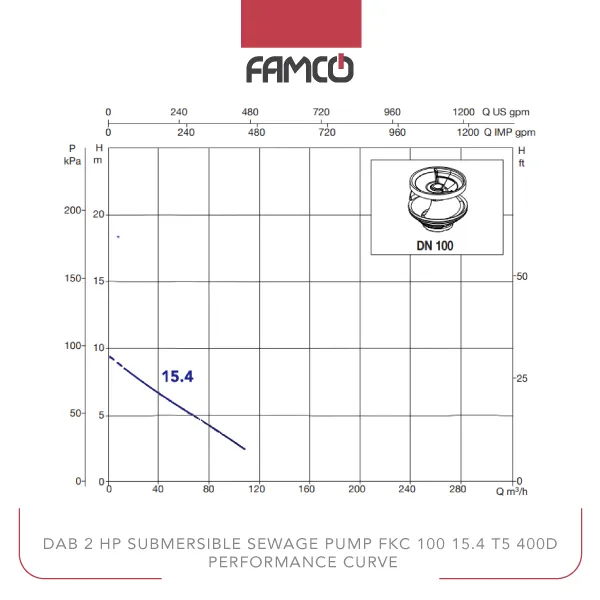

Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D Performance Curve

Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D Applications

Wastewater and sewage management
Industrial fluid transfer
Water supply systems
Construction site dewatering

Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D Benefits

Handles solids up to 100 mm easily
Durable cast iron construction
High flow rate for quick transfer
Long-lasting seals for reliable operation

Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D Price List

No.	Name	Price
1	Dab 2 HP Submersible Sewage Pump FKC 100 15.4 T5 400D Price	Contact us

Brand	Dab
Applications	Industrial areas, Sewage management, Wastewater management
Power (kW)	1.5
Power (HP)	2
Maximum Flow Rate (L/min)	1800
Maximum Delivery Head (m)	8.9
Voltage (V)	400
