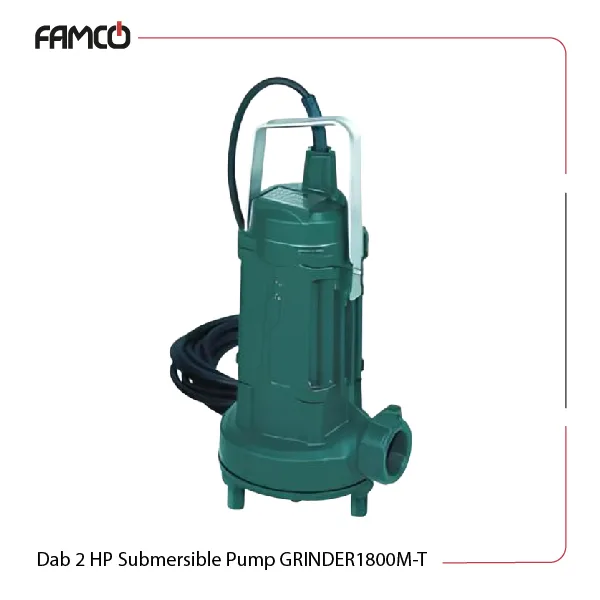

Dab 2 HP Submersible Pump GRINDER1800M-T Specifications
This DAB sewage pump supports both single-phase (220–240 V) and three-phase (380–415 V) power supplies and runs at a frequency of 50 Hz. Built with an IP68 protection rating and an insulation class F motor, it’s suitable for submerged use in demanding environments. The two-pole motor is combined with a tempered stainless steel grinder to improve cutting action and reduce clogs. This series of DAB submersible pumps also operates reliably at ambient temperatures up to 40°C( given the motor is above water level). These Dab pumps are IP68 protected and F insulated.
| Specification | Value |
| Power (HP) | 2.0 HP |
| Power (kW) | 1.5 kW |
| Maximum flow rate | 200 l/min (12 m³/h) |
| Maximum delivery head | 14 – 27.2 meters |
| Maximum immersion depth | 7 meters |
| Max liquid temperature | 0 – 55°C |
| Max ambient temp (motor above water) | Up to 40°C |
| Voltage (single-phase) | 220 – 240 V |
| Voltage (three-phase) | 380 – 415 V |
| Frequency | 50 Hz |
| Protection degree | IP68 |
| Insulation class | F |
| Number of poles | 2 |
| Weight (single-phase model) | 43.8 kg |
Dab 2 HP Submersible Pump GRINDER1800M-T Materials
- Silicone carbide mechanical shaft seal
- Grinder made from AISI 440 tempered stainless steel

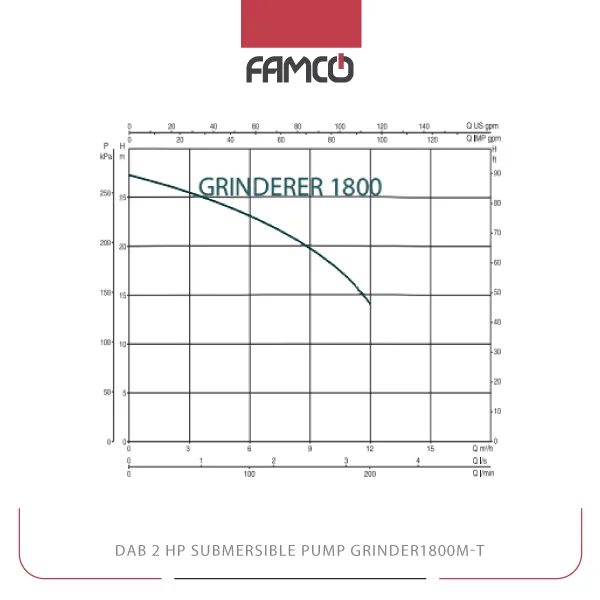

Dab 2 HP Submersible Pump GRINDER1800M-T Performance Curve
Dab 2 HP Submersible Pump GRINDER1800M-T Applications
- Domestic and commercial grey water disposal
- Small treatment plants or lift stations
- Restaurants, hotels, and kitchens with hot wastewater
- Facilities with moderate head height requirements
Dab 2 HP Submersible Pump GRINDER1800M-T Benefits
- Cuts and transfers waste up to 27.2 meters in height
- Tempered steel grinder handles fibrous waste efficiently
- Performs well in elevated temperature conditions
- Suitable for single- or three-phase setups
Dab 2 HP Submersible Pump GRINDER1800M-T Price List
| No. | Name | Price |
| 1 | Dab 2 HP Submersible Pump GRINDER1800M-T Price | Contact us |
