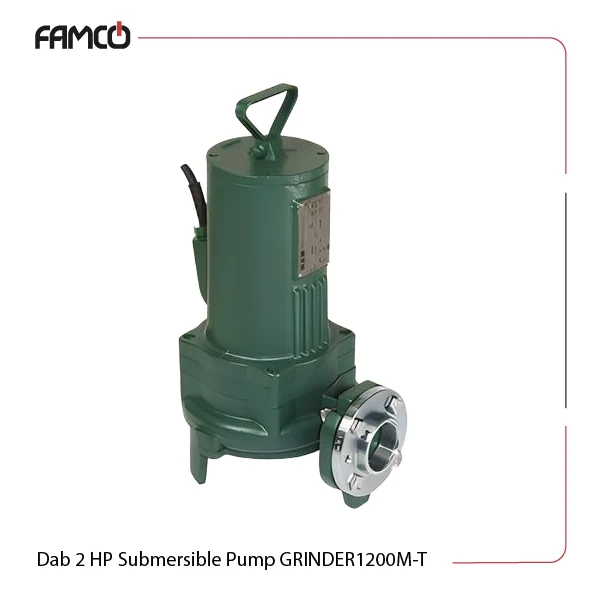

Dab 2 HP Submersible Pump GRINDER1200M-T Specifications
This 2 HP Dab sewage pump has a 20-meter immersion depth for waste transfer jobs. It’s compatible with both single-phase (220–240 V) and three-phase (380–415 V) power inputs at 50 Hz for installation in residential or industrial setups. The IP68 protection level and insulation class F provide safe and consistent operation in submerged environments that submersible pumps often endure. Lightweight (39 kg) and powerful, this Grinder Dab pump has a head range of 4.2 to 20 meters. A two-pole motor and built-in grinder system in hardened AISI 440C steel help break down solids during pumping in heavy-duty sewage systems.
| Specification | Value |
| Power (HP) | 2 HP |
| Power (kW) | 1.5 kW |
| Maximum flow rate | 300 l/min (18 m³/h) |
| Maximum delivery head | 4.2 – 20 meters |
| Maximum immersion depth | 20 meters (with proper cable) |
| Max temperature (°C) | 0-35 |
| Type of liquid | Wastewater with fibers/textiles |
| Voltage (single-phase) | 220 – 240 V |
| Voltage (three-phase) | 380 – 415 V |
| Frequency | 50 Hz |
| Protection degree | IP68 |
| Insulation class | F |
| Number of poles | 2 |
| Weight | 39 kg |
Dab 2 HP Submersible Pump GRINDER1200M-T Materials
- shaft seal (pump side): Carbon graphite – Alumina
- shaft seal (motor side): Carbon graphite – Alumina
- Grinder: AISI 440C hardened steel
Dab 2 HP Submersible Pump GRINDER1200M-T Technical Data
| m3/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| head (m) | 20 | 18.9 | 17 | 14.7 | 11.7 | 8.1 | 4.2 |

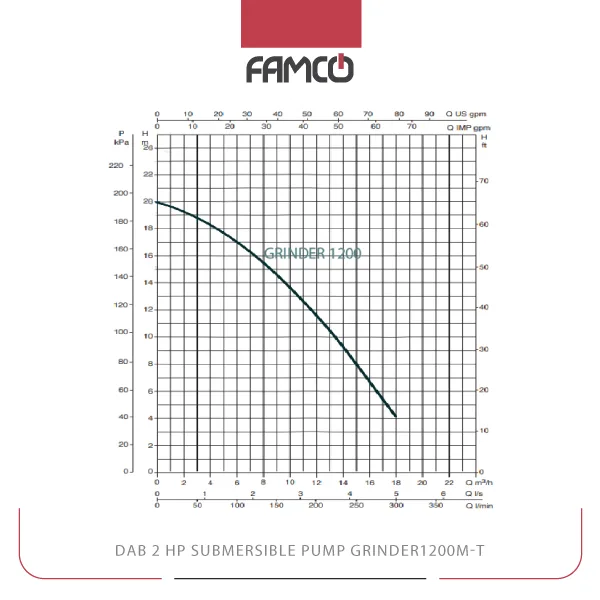

Dab 2 HP Submersible Pump GRINDER1200M-T Performance Curve
Dab 2 HP Submersible Pump GRINDER1200M-T Applications
- Medium to large sewage stations
- Wastewater transfer from industrial or agricultural sites
- Septic tank emptying in multi-residence properties
- Commercial and municipal drainage systems
Dab 2 HP Submersible Pump GRINDER1200M-T Benefits
- Handles higher flow demands with up to 300 l/min capacity
- Grinder reduces risk of clogging from solid or fibrous waste
- Suitable for deep installations with up to 20 m immersion
- Built for versatile power configurations and 24/7 use
Dab 2 HP Submersible Pump GRINDER1200M-T Price List
| No. | Name | Price |
| 1 | Dab 2 HP Submersible Pump GRINDER1200M-T Price | Contact us |
