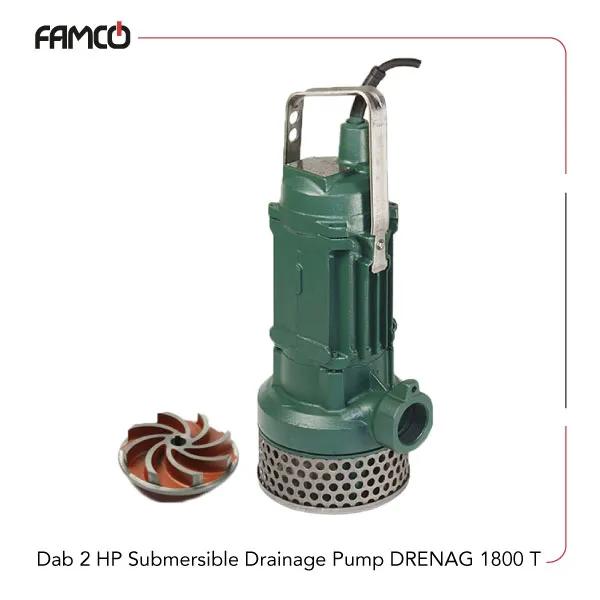

Dab 2 HP Submersible Drainage Pump DRENAG 1800 T Specifications
Dab 2 HP submersible drainage pump DRENAG 1800 T delivers 1.5 HP (2 kW) of power and operates with a current of 4.4 amperes. It can move up to 30 cubic meters of water per hour, or 500 liters per minute, making it suitable for a wide range of water transfer tasks. This Dab submersible drainage pump can generate a maximum head of 21.5 meters, offering strong lifting capacity for different applications. Weighing 44.2 kilograms, it is designed for stability during operation. This pump allows solids up to 12 mm to pass through, making it suitable for slightly contaminated liquids. It operates effectively with temperatures from 0 °C to 55 °C and can be submerged up to 7 meters, providing flexibility for both shallow and deep water applications. Equipped with IP68 protection and insulation class F, the pump is well-protected against water ingress and has thermal safety measures for efficient, long-term operation. Its combination of power, capacity, and versatility makes it a reliable choice for residential, commercial, and light industrial water pumping needs.
| Specification | Value |
| Number of phases | Three-phase |
| Power (HP) | 1.5 |
| Power (kW) | 2 |
| Current (A) | 4.4 |
| Maximum Flow rate (m3/h) | 30 |
| Maximum Flow rate (l/min) | 500 |
| Maximum head (m) | 21.5 |
| Weight (kg) | 44.2 |
| Free passage of solids | 12 mm |
| Liquid temperature range | 0 °C to +55 °C |
| Max. immersion depth | 7 metres |
| Protection class | IP68 |
| Insulation class | F |

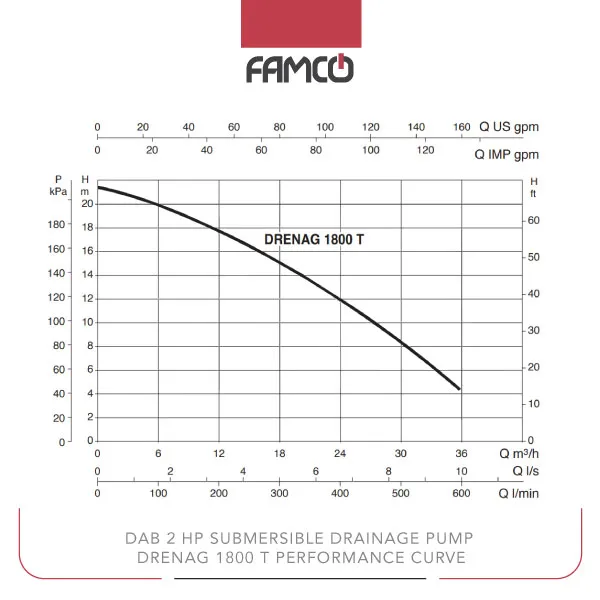

Dab 2 HP Submersible Drainage Pump DRENAG 1800 T Performance Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 | 30 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| H (m) | 21.5 | 20 | 19 | 18 | 16.5 | 15.2 | 12 | 8.5 | 4.5 |
Dab 2 HP Submersible Drainage Pump DRENAG 1800 T Applications
- Industrial water transfer
- Agricultural irrigation
- Construction site drainage
- Flood control and water removal
Dab 2 HP Submersible Drainage Pump DRENAG 1800 T Benefits
- High flow rate for quick water movement
- Durable and water-resistant IP68 protection
- Handles solids up to 12 mm for versatile use
- Operates efficiently within a wide temperature range
Dab 2 HP Submersible Drainage Pump DRENAG 1800 T Price List
| No. | Name | Price |
| 1 | Dab 2 HP Submersible Drainage Pump DRENAG 1800 T Price | Contact us |
