Dab 2.4HP Submersible Pump DIG 1800 Specifications
Dab 2.4HP submersible pump DIG 1800 is designed for versatile installation with both fixed and portable setups in a vertical position. This Dab submersible pump can handle a maximum immersion depth of 20 meters, as long as the appropriate cable length is used. The motor is protected with an IP 68 rating to make sure it is dust-tight and can withstand continuous immersion in water. This Dab submersible pump has an insulation class of F to help it operate safely at higher temperatures. This unit features 2 poles and allows for a free passage of solids up to 6 mm to prevent most blockages. It operates on a voltage range of 220-240V and a frequency of 50 Hz that matches various electrical systems. The head range is impressive, varying from 4.9 to 17.6 meters, which enhances its versatility even more in different applications.
| Specification | Value |
| Installation | fixed or portable, vertical position |
| Maximum immersion depth | 20 meters (with cable of appropriate length) |
| Motor protection class | IP 68 |
| Insulation class | F |
| Number of poles | 2 |
| Free passage of solids | 6 mm |
| Voltage(V) | 220-240 |
| Frequency (Hz) | 50 |
| Head (m) | 4.9-17.6 |
| Power (HP) | 2.4 |
| Power (kW) | 1.8 |
Dab 2.4HP Submersible Pump DIG 1800 Materials
- Handle: Chrome Steel
- Upper Cover: En Gjl 200 Cast Iron
- Rotor: Shaft Aisi 420
Motor Body: Aisi 304 - Mechanical Seal On Motor Side: Carbon/Alumina
- Mechanical Seal On Pump: Silicon Carbide/Silicon Carbide
- Impeller: Aisi Astm 532-80

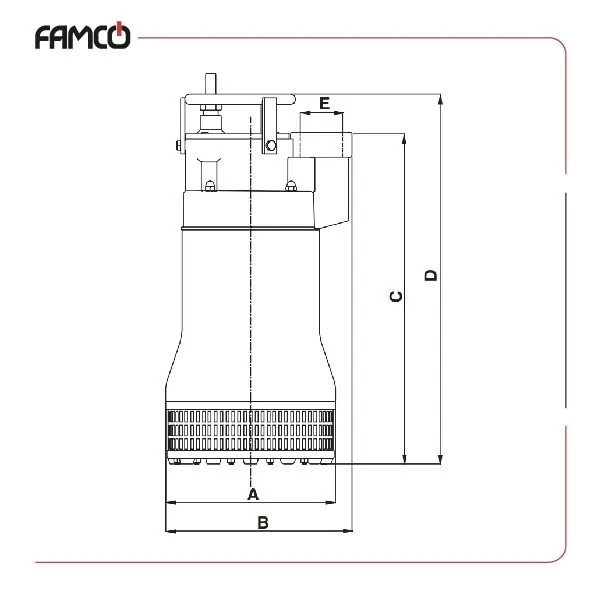

Dab 2.4HP Submersible Pump DIG 1800 Dimensions and Weight
| Dimensions (mm) | |
| A | 250 |
| B | 270 |
| C | 480 |
| D | 530 |
| E DNM | 2 1/2” – F |
| Weight (kg) | 36 |
Dab 2.4HP Submersible Pump DIG 1800 Technical Data
| l/min | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 |
| m3 /h | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| H (m) | 17.6 | – | 15 | 13.8 | 12.5 | 11 | 9.4 | 8.1 | 6.3 | 4.9 |

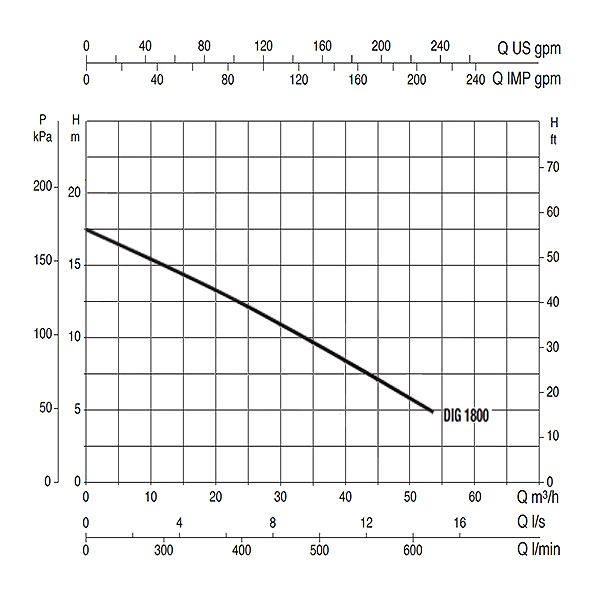

Dab 2.4HP Submersible Pump DIG 1800 Performance Curve
Dab 2.4HP Submersible Pump DIG 1800 Applications
- Water supply systems in residential buildings
- Irrigation in agricultural settings
- Drainage in construction sites
- Wastewater management in industrial facilities
Dab 2.4HP Submersible Pump DIG 1800 Benefits
- Versatile installation options for different needs
- High durability with IP 68 protection
- Efficient operation with a wide head range
- Safe and reliable performance with insulation class F
Dab 2.4HP Submersible Pump DIG 1800 Price List
| No. | Name | Price |
| 1 | Dab 2.4HP Submersible Pump DIG 1800 Price | Contact us |
