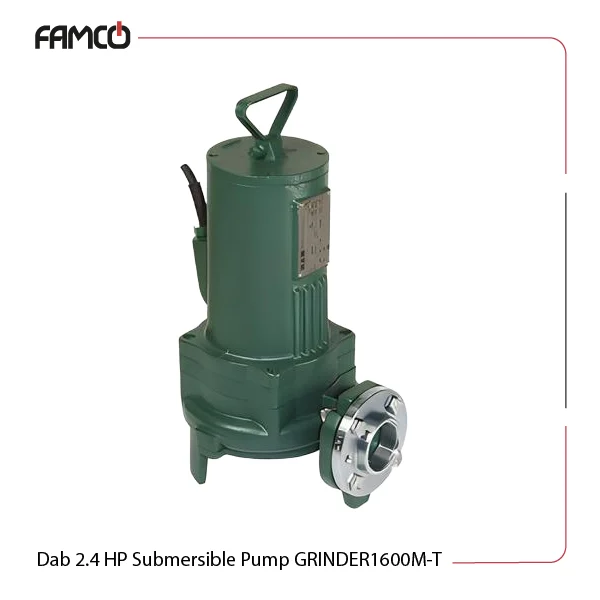

Dab 2.4 HP Submersible Pump GRINDER1600M-T Specifications
This sewage pump from Dab is configured for demanding environments. Running on a 2.4 HP pumping force has allowed this Dab pump to deliver 300 l/min flow rates at its best. It works with single-phase (220–240 V) or three-phase (380–415 V) power at 50 Hz, which is standard. The motor is built to insulation class F standards and protected by an IP68 rating, suitable for deep submersion tasks. A two-pole motor and a built-in grinder in AISI 440C hardened steel help this line of submersible pumps break down fibrous waste during operation. This submersible pump has advanced features that enable a maximum flow rate up to 300 l/min or 18 m³/h.
| Specification | Value |
| Power (HP) | 2.4 HP |
| Power (kW) | 1.8 kW |
| Maximum flow rate | 300 l/min (18 m³/h) |
| Maximum delivery head | 5.7 – 23.5 meters |
| Maximum immersion depth | 20 meters (with proper cable) |
| Max temperature | 0 – 35°C |
| Type of liquid | Wastewater with fibers/textiles |
| Voltage (single-phase) | 220 – 240 V |
| Voltage (three-phase) | 380 – 415 V |
| Frequency | 50 Hz |
| Protection degree | IP68 |
| Insulation class | F |
| Number of poles | 2 |
| Weight | 40 kg |
Dab 2.4 HP Submersible Pump GRINDER1600M-T Materials
- shaft seal (pump side): Carbon graphite – Alumina
- shaft seal (motor side): Carbon graphite – Alumina
- Grinder: AISI 440C hardened steel
Dab 2.4 HP Submersible Pump GRINDER1600M-T Technical Data
| m3/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| head (m) | 23.5 | 22.3 | 20.6 | 18 | 14.8 | 11 | 5.7 |

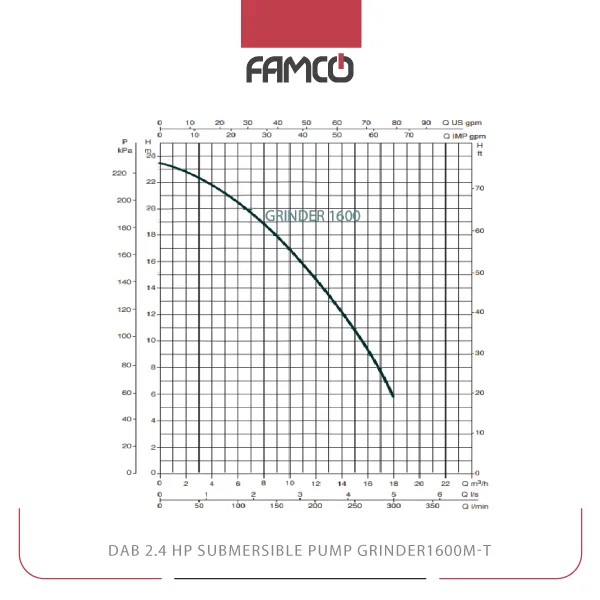

Dab 2.4 HP Submersible Pump GRINDER1600M-T Performance Curve
Dab 2.4 HP Submersible Pump GRINDER1600M-T Applications
- Municipal and commercial sewage networks
- Septic tank emptying in remote properties
- Industrial wastewater treatment systems
- Agricultural or food processing waste stations
Dab 2.4 HP Submersible Pump GRINDER1600M-T Benefits
- Handles high-lift drainage with up to 23.5 m head
- Grinder reduces clogging from solid and fibrous waste
- Operates at up to 300 l/min for efficient wastewater flow
- IP68 protection and wide voltage support for flexibility
Dab 2.4 HP Submersible Pump GRINDER1600M-T Price List
| No. | Name | Price |
| 1 | Dab 2.4 HP Submersible Pump GRINDER1600M-T Price | Contact us |
