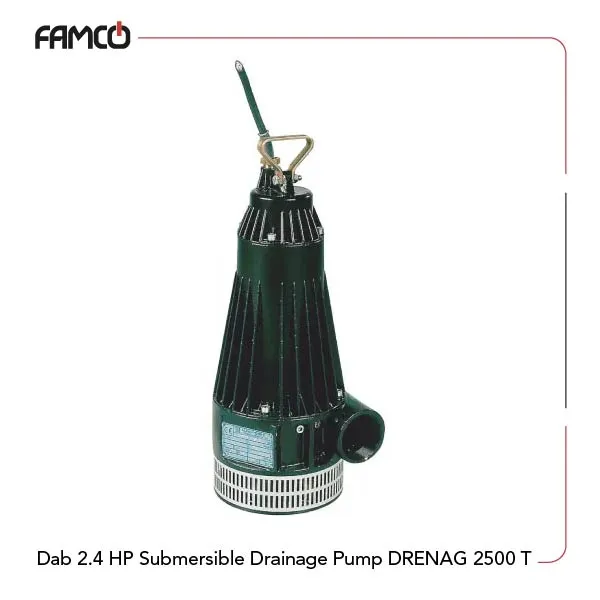

Dab 2.4 HP Submersible Drainage Pump DRENAG 2500 T Specifications
Dab submersible drainage pump DRENAG 2500 T delivers 2.4 HP (1.8 kW) of power and operates at 400 volts, drawing 5.3 amperes. It can handle a maximum flow rate of 66 cubic meters per hour, or approximately 1100 liters per minute, making it ideal for high-volume water transfer tasks. This Dab drainage pump can generate a maximum head of 15 meters, providing enough pressure for a variety of applications. Weighing 24 kilograms, it offers stability and ease of handling during operation. The pump features a 2½-inch pipe diameter for connection, allowing efficient fluid transfer and straightforward installation. Designed for demanding environments, this pump combines power, capacity, and practical design, making it a solid choice for residential, commercial, or light industrial water pumping needs.
| Specification | Value |
| Number of phases | Three-phase |
| Power (HP) | 2.4 |
| Power (kW) | 1.8 |
| Voltage (V) | 400 |
| Current (A) | 5.3 |
| Maximum Flow rate (m3/h) | 66 |
| Maximum Flow rate (l/min) | 1100 |
| Maximum head (m) | 15 |
| Weight (kg) | 24 |
| Pipe DNM | 2″ 1/2 |

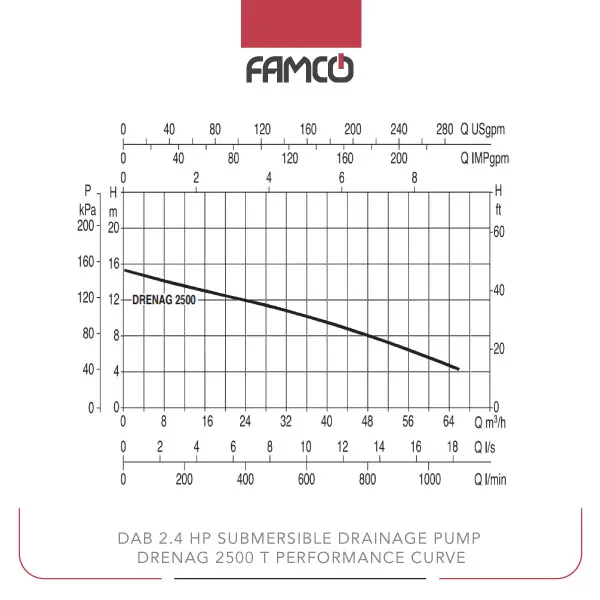

Dab 2.4 HP Submersible Drainage Pump DRENAG 2500 T Performance Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 |
| H (m) | 15 | 14.4 | 13.9 | 13.5 | 13.1 | 12.8 | 12.4 | 11.7 | 10.9 | 9.9 | 8.9 | 7.9 | 6.7 | 5.3 | 3.9 |
Dab 2.4 HP Submersible Drainage Pump DRENAG 2500 T Applications
- Industrial water transfer
- Agricultural irrigation systems
- Large-scale building water supply
- Municipal water management
Dab 2.4 HP Submersible Drainage Pump DRENAG 2500 T Benefits
- High flow capacity for large volume transfer
- Reliable performance in demanding environments
- Efficient power consumption with 1.8 kW motor
- Durable construction for long-term use
Dab 2.4 HP Submersible Drainage Pump DRENAG 2500 T Price List
| No. | Name | Price |
| 1 | Dab 2.4 HP Submersible Drainage Pump DRENAG 2500 T Price | Contact us |
