Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 HF Specifications
Dab 1HP submersible monobloc multistage pump DIVER 100 HF is designed for clean liquids that are free from solids and abrasives. It operates efficiently within a temperature range of 0 °C to +35 °C. The maximum immersion depth in this Dab submersible pump is 20 meters which is suitable for various applications. The motor implemented in the product’s build is protected with an IP 68 rating for maximum durability and reliability in challenging environments. It can be installed in wells, tanks, and cisterns in a vertical position. The pump operates on standard voltages of single-phase 230 V / 50 Hz or three-phase 400 V / 50 Hz. The lip seal is made of NBR 70, while the mechanical seal on the pump side is SiC/SiC. Both the diffuser and impeller are crafted from technopolymer which is a lightweight yet solid material. The shaft with rotor is made from AISI 304 Stainless Steel to make it resistant to corrosion. The product’s power output of 0.75 kW (1 HP) enables it achieve a head of 10 to 30 meters, making it versatile for various pumping needs.
| Specification | Value | |
| Pumped liquid | clean, free of solids and abrasives, non-aggressive | |
| Liquid temperature range | from 0 °C to +35 °C | |
| Max. immersion depth | 20 m | |
| Motor protection class | IP 68 | |
| Motor protection rating | F | |
| Standard voltage | Single-phase (230 V/50 Hz) | |
| Three-phase (400 V/50 Hz) | ||
| Power (kW) | 0.75 | |
| Power (HP) | 1 | |
| H (m) | 10-30 | |
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 HF Materials
- Lip seal: NBR 70
- Mechanical seal on the pump side: SiC/SiC
- Diffuser: technopolymer
- Impeller: technopolymer
- Shaft with rotor: AISI 304 Stainless Steel X5CrNi1810 UNI 10088-3
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 HF Dimensions and Weight
| Dimensions (mm) | |
| Ø | 127 |
| H | 459 |
| Weight (kg) | 11.5 |
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 HF Technical Data
| m3/h | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 |
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 |
| H (m) | 30 | 28 | 26 | 24 | 22 | 20 | 16 | 13 | 10 |

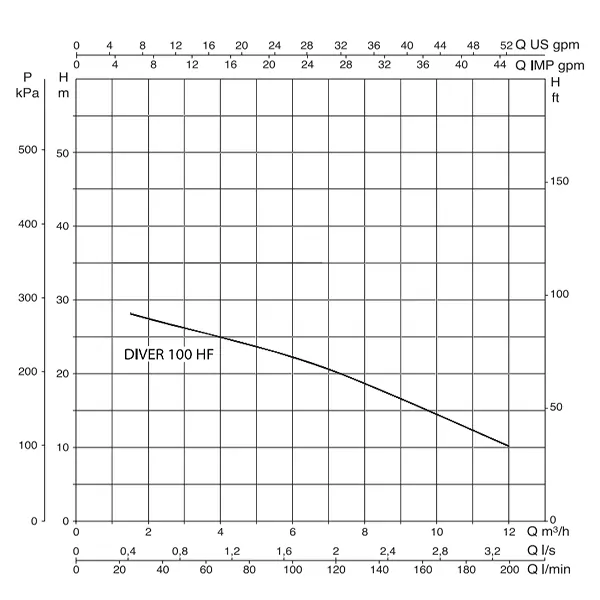

Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 HF Performance Curve
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 HF Applications
- Water transfer in residential wells
- Irrigation systems for agriculture
- Drainage in construction sites
- Water supply in tanks and cisterns
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 HF Benefits
- Durable construction with high-quality materials
- Efficient operation within a wide temperature range
- Versatile installation options for various environments
- Reliable performance with low maintenance requirements
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 HF Price List
| No. | Name | Price |
| 1 | Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 HF Price | Contact us |
There are no reviews yet.
