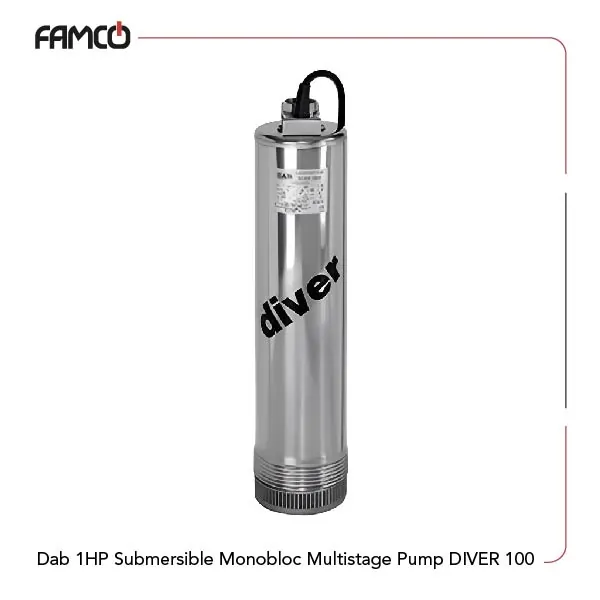

Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 Specifications
Dab 1HP submersible monobloc multistage pump DIVER 100 features a power output of 0.75 kW (1 HP) and operates efficiently within a height range of 11 to 55 meters. This Dab submersible pump can handle liquid temperatures from 0 °C to +35 °C for various applications. The maximum immersion depth is set and tested at 20 meters for a reliable performance even in deep installations. The product’s motor is protected with an IP 68 rating, which means it is dust-tight and can withstand continuous immersion in water. The motor protection rating is F to enhance durability and stability under different conditions. Installation is straightforward, as it can be set up in wells, tanks, and cisterns in a vertical position. The standard voltage options include single-phase 230 V/50 Hz and three-phase 400 V/50 Hz. The lip seal implemented in this pump is made from NBR 70, while both the diffuser and impeller are crafted from technopolymer for enhanced performance. The product has two poles and features a shaft with a rotor made from AISI 304 stainless steel, for increased longevity and resistance to corrosion.
| Specification | Value | |
| Power (kW) | 0.75 | |
| Power (HP) | 1 | |
| H (m) | 11-55 | |
| Liquid temperature range | from 0 °C to +35 °C | |
| Max. immersion depth | 20 m | |
| Motor protection class | IP 68 | |
| Motor protection rating | F | |
| Standard voltage | single-phase | 230 V / 50 Hz |
| three-phase | 400 V / 50 Hz | |
| No. of poles | 2 | |
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 Materials
- Shaft with rotor: AISI 304 STAINLESS STEEL X5CrNi1810 UNI 10088-3
- Lip seal: NBR 70
- Diffuser: technopolymer
- Impeller: technopolymer
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |
| Ø | H | 11.7 |
| 127 | 482 | |
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 Technical Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| H (m) | 55 | 50 | 45 | 41 | 35 | 30 | 25 | 18 | 11 |

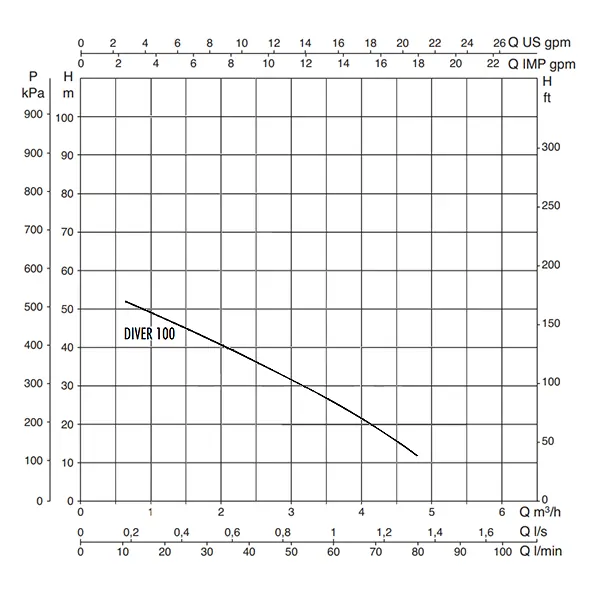

Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 Performance Curve
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 Applications
- Water supply in residential and commercial buildings
- Irrigation systems for agriculture
- Drainage in construction sites
- Aquaculture and fish farming
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 Benefits
- High efficiency with low power consumption
- Durable materials ensure long-lasting performance
- Versatile installation options for various settings
- Excellent protection against water and dust ingress
Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 Price List
| No. | Name | Price |
| 1 | Dab 1HP Submersible Monobloc Multistage Pump DIVER 100 Price | Contact us |
