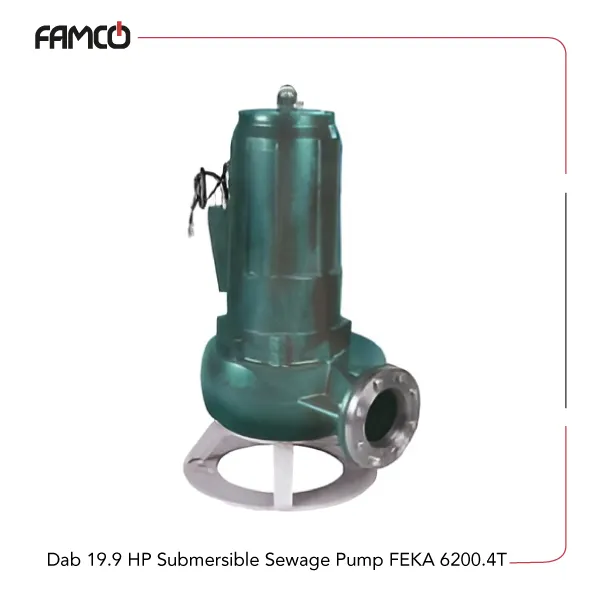

Dab 19.9 HP Submersible Sewage Pump FEKA 6200.4T Specifications
This pump features a robust cast iron impeller with a single-channel, closed design, suitable for handling liquids with a pH between 6 and 11. It can pass solids up to 108 mm in size, making it ideal for applications involving debris or solids in suspension. The Dab sewage pump operates efficiently within a temperature range of 0°C to 40°C and can be installed at depths up to 20 meters, either fixed with a coupling or freely in a vertical position. Designed for continuous operation when fully submerged, this Dab submersible pump ensures reliable performance in demanding environments. The pump is powered by a three-phase 400 V supply, delivering a maximum head of 21 meters and a flow rate of 6000 liters per minute. It weighs 226 kg, indicating a sturdy build suitable for heavy-duty tasks. Its construction and specifications make it versatile for various industrial and municipal applications, especially where solids handling and high flow are required.
| Specification | Value |
| Impeller Type | single-channel, closed |
| Free Solids Passage (mm) | 95-108 |
| pH Range | 6 to 11 |
| Liquid Temperature Range | 0°C to +40°C |
| Maximum Installation Depth | 20 metres |
| Installation Method | fixed using a coupling device, or free in the vertical position |
| Operation | continuous duty with completely submerged pump |
| Impeller Material | cast iron |
| Three-phase Voltage | 400 V |
| Maximum Delivery Head | 21 metres |
| Maximum Flow Rate | 6000 l/min |
| Power | 14.9 kW / 19.9 HP |
| Weight | 226 kg |
Dab 19.9 HP Submersible Sewage Pump FEKA 6200.4T Applications
- Wastewater and sewage pumping
- Industrial fluid transfer
- Municipal water management
- Flood control and drainage
Dab 19.9 HP Submersible Sewage Pump FEKA 6200.4T Benefits
- Handles solids up to 108 mm, reducing clogging
- Operates continuously in submerged conditions
- High flow rate for large volume transfer
- Durable cast iron construction for long-lasting use
Dab 19.9 HP Submersible Sewage Pump FEKA 6200.4T Price List
| No. | Name | Price |
| 1 | Dab 19.9 HP Submersible Sewage Pump FEKA 6200.4T Price | Contact us |
