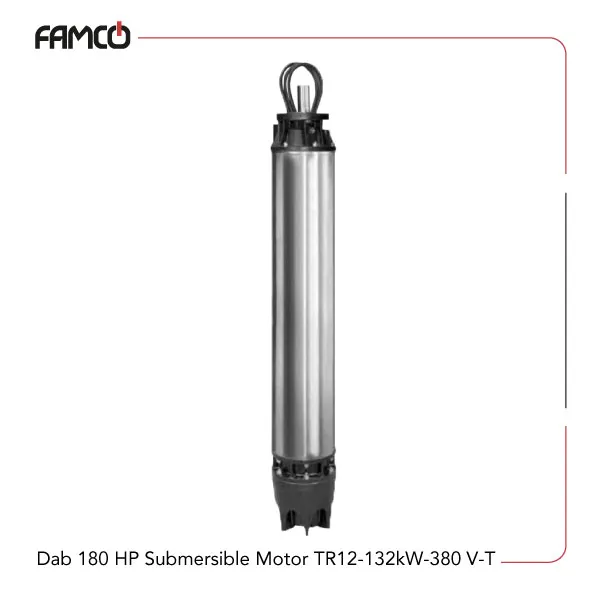

Dab 180 HP Submersible Motor TR12-132 kW-380 V-T Specifications
Dab 180 HP submersible motor TR12-132 kW-380 V-T features a powerful 132 kW (180 HP) motor that delivers reliable performance for demanding applications. It operates at a speed of 1500 rpm and requires a current of 256 amperes. The starting current ratio is 5.8, ensuring smooth startup. It is equipped with a 12-inch flanging for secure attachment and has a protection class of IP58, with an option for IP68 upon request. The cooling system maintains a flow speed of 0.5 meters per second, helping to prevent overheating during continuous operation. This Dab pump motor can tolerate power supply fluctuations of +6% to -10%, ensuring stable performance even with minor voltage variations. It can be started up to five times per hour without issues, making it ideal for intermittent use. The maximum operating depth is 300 meters, and it can withstand pressures up to 60 bar, suitable for underwater or deep-sea applications. For horizontal operation, it supports power ranges from 180 HP to 260 HP, providing versatility for different operational needs.
| Specification | Value |
| Power (kW) | 132 |
| Power (HP) | 180 |
| Current (A) | 256 |
| Starting Current Ratio | 5.8 |
| P1 (W) | 148315 |
| Speed (rpm) | 1500 |
| Flanging | 12″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6% / -10% |
| Max. starts | 5/h |
| Max operating depth | 300 m |
| Max operating temperature | 60 bar |
| Horizontal operation | 180 HP – 260 HP |
Dab 180 HP Submersible Motor TR12-132 kW-380 V-T Applications
- Underwater exploration and subsea equipment
- Industrial machinery requiring high power
- Deep-sea oil and gas operations
- Heavy-duty pumping systems
Dab 180 HP Submersible Motor TR12-132 kW-380 V-T Benefits
- High power output for demanding tasks
- Robust protection against harsh environments
- Flexible installation options
- Reliable performance at great depths
Dab 180 HP Submersible Motor TR12-132 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 180 HP Submersible Motor TR12-132 kW-380 V-T Price | Contact us |
