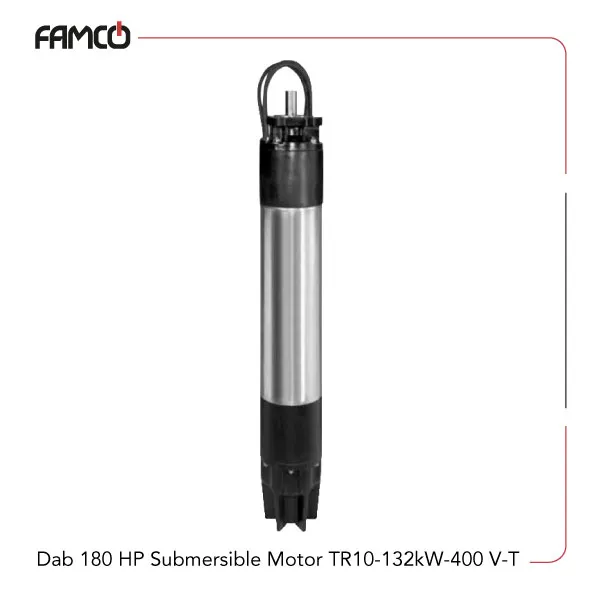

Dab 180 HP Submersible Motor TR10-132 kW-400 V-T

132 kW (180 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Dab 180 HP Submersible Motor TR10-132 kW-400 V-T

Dab 180 HP submersible motor TR10-132 kW-400 V-T is built to deliver strong output in challenging underwater environments. It operates at 132 kW (180 HP), giving it the power needed for deep-well and high-demand pumping applications. During operation, the motor draws 257 amperes, reflecting the substantial energy it channels into its work. When starting up, it reaches a starting current ratio of 5.7, allowing it to overcome initial resistance and get the system moving quickly. These characteristics make the motor a solid choice for projects that call for consistent performance and significant force below the surface.

Related Products

Dab 180 HP Submersible Motor TR10-132 kW-400 V-T Specifications

This high-performance motor delivers 132 kW (180 HP) of power, suitable for demanding industrial applications. It operates at a speed of 3000 rpm and draws a current of 257 amperes. The motor features a starting current ratio of 5.7, ensuring reliable startup under various conditions. It has a flanging size of 10 inches, making it compatible with standard equipment. The protection class is IP58, with an option for IP68 upon request, providing excellent resistance against dust and water ingress. Cooling is maintained with a flow speed of 0.5 meters per second, ensuring optimal temperature regulation during operation. The power supply tolerance is set at +6%/-10%, allowing flexibility in different electrical environments. This Dab motor can be started up to 8 times per hour, making it suitable for applications requiring frequent startups. It is designed to operate at depths up to 300 meters and withstand pressures up to 60 bar, making it ideal for underwater or deep-sea operations. Horizontal operation ranges from 100 HP to 230 HP, providing versatility for various industrial setups.

Dab 180 HP Submersible Motor TR10-132-kW-400-V-T

Specification Value
Power (kW) 132
Power (HP) 180
Current (A) 257
Starting Current Ratio 5.7
P1 (W) 150000
Speed (rpm) 3000
Flanging 10″
Protection class IP58 (IP68 on request)
Cooling flow speed 0.5 m/s
Power supply tolerance +6%/-10%
Max. starts 8/h
Max. operating depth 300 m
Max. operating temperature 60 bar
Horizontal operation 100 HP-230 HP

Dab 182 HP Submersible Motor TR10-132 kW-400 V-T Applications

  • Underwater exploration equipment
  • Deep-sea oil and gas operations
  • Heavy industrial machinery
  • Marine and subsea systems



Dab 182 HP Submersible Motor TR10-132 kW-400 V-T Benefits

  • High power output for demanding tasks
  • Excellent water and dust resistance
  • Reliable performance at great depths
  • Flexible operation with broad power range



Dab 182 HP Submersible Motor TR10-132 kW-400 V-T Price List

No. Name Price
1 Dab 182 HP Submersible Motor TR10-132 kW-400 V-T Price Contact us
