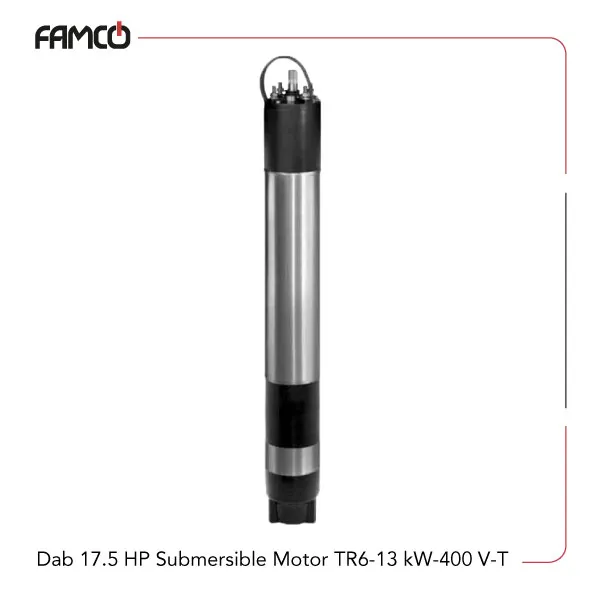

Dab 17.5 HP Submersible Motor TR6-13 kW-400 V-T

Dab 17.5 HP Submersible Motor TR6-13 kW-400 V-T Specifications

Dab submersible motor TR6-13 kW-400 V-T is equipped with a 13 kW (17.5 HP) motor capable of delivering high performance, drawing 29 amperes during operation. It has a starting current ratio of 3.8, allowing smooth startup under various conditions. This Dab motor operates at 3000 rpm, making it suitable for demanding industrial applications. A NEMA 6″ flanging provides secure and standardized mounting. The motor carries an IP68 protection rating, offering strong resistance against dust and water ingress for use in harsh or submerged environments. Cooling is maintained at a flow speed of 0.5 meters per second, supporting efficient heat dissipation during continuous operation. The motor accommodates power supply variations of +6% to –10% and supports up to 15 starts per hour, making it appropriate for intermittent operation. It is designed for underwater deployment at depths of up to 300 meters and can withstand pressures up to 60 bar.

Specification	Value
Power (kW)	13
Power (HP)	17.5
Current (A)	29
Starting Current Ratio	3.8
P1 (W)	16250
Speed (rpm)	3000
Flanging	NEMA 6″
Protection Class	IP68
Cooling Flow Speed (m/s)	0.5
Power Supply Tolerance	+6%/-10%
Max Starts	15/h
Max Operating Depth (m)	300
Max Operating Temperature (bar)	60
Horizontal Operation	7.5 HP – 50 HP

Dab 17.5 HP Submersible Motor TR6-13 kW-400 V-T Applications

• Underwater equipment and submersible pumps
• Industrial machinery requiring high power
• Deep-sea exploration devices
• Heavy-duty manufacturing processes



Dab 17.5 HP Submersible Motor TR6-13 kW-400 V-T Benefits

• High power output with 17.5 HP for demanding tasks
• Durable IP68 protection for harsh environments
• Supports multiple starts per hour for flexibility
• Suitable for deep-sea applications up to 300 meters



Dab 17.5 HP Submersible Motor TR6-13 kW-400 V-T Price List

No.	Name	Price
1	Dab 17.5 HP Submersible Motor TR6-13 kW-400 V-T Price	Contact us
