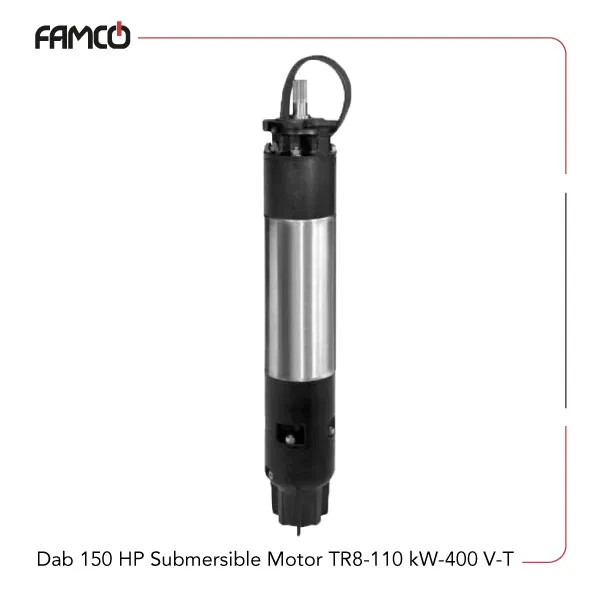

Dab 150 HP Submersible Motor TR8-110 kW-400 V-T Specifications
This industrial motor provides 110 kilowatts of power, equivalent to 150 horsepower, making it well suited for demanding applications. It operates at 3000 revolutions per minute and draws 213 amperes. The starting current ratio of 5.8 indicates strong starting torque, and its operating power consumption is approximately 126,437 watts. The motor uses a NEMA 8-inch flanging, allowing compatibility with standard mounting configurations. This Dab submersible motor carries an IP58 protection rating, with an IP68 option available for environments that call for higher resistance to dust and water. Cooling is maintained with a flow speed of 0.5 meters per second to help manage heat during operation. This Dab accepts voltage variations from +6% to -10% and can be started up to 10 times per hour, making it suitable for applications that involve intermittent operation. Designed for deep-sea and high-pressure conditions, the motor can operate at depths up to 300 meters and withstand pressures up to 60 bar.
| Specification | Value |
| Power (kW) | 110 |
| Power (HP) | 150 |
| Current (A) | 213 |
| Starting Current Ratio | 5.8 |
| P1 (W) | 126437 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 8″ |
| Protection Class | IP58(IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 150 HP Submersible Motor TR8-110 kW-400 V-T Applications
- Water pumping stations
- Manufacturing plants
- Oil and gas industry
- Mining operations
Dab 150 HP Submersible Motor TR8-110 kW-400 V-T Benefits
- High power output for demanding tasks
- Excellent protection against dust and water
- Reliable performance with multiple starts
- Suitable for deep and high-temperature environments
Dab 150 HP Submersible Motor TR8-110 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 150 HP Submersible Motor TR8-110 kW-400 V-T Price | Contact us |
