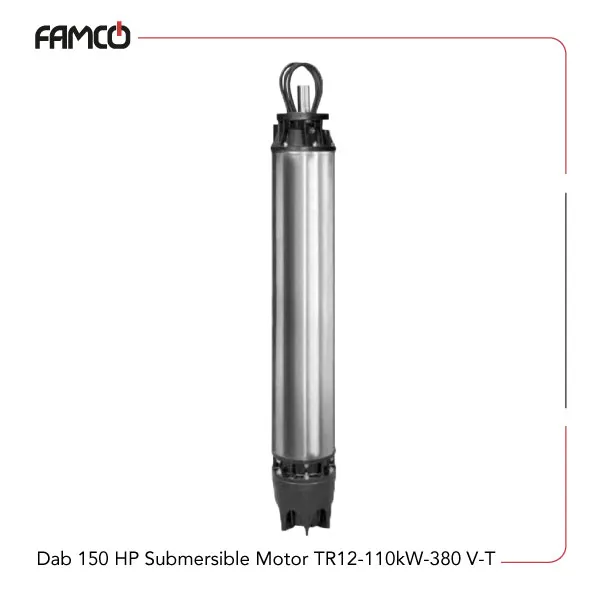

Dab 150 HP Submersible Motor TR12-110 kW-380 V-T Specifications
Dab submersible motor TR12-110 kW-380 V-T delivers 110 kW (150 HP) of power. It operates at a speed of 1500 rpm and requires a current of 214 amperes. The starting current ratio is 5.8, which indicates a strong startup capability. This Dab submerged motor features a flanging size of 12 inches, ensuring compatibility with various equipment setups. Its protection class is IP58, providing excellent resistance against dust and water ingress, with an option for IP68 upon request for even higher protection. The cooling system maintains a flow speed of 0.5 meters per second, helping to prevent overheating during prolonged use. The power supply tolerance ranges from +6% to -10%, allowing flexibility in different electrical environments. It can be started up to five times per hour without issues, making it reliable for frequent operations. The motor is designed to operate at depths up to 300 meters and withstand pressures up to 60 bar, suitable for underwater or deep-sea applications. For horizontal operation, it supports power levels between 180 HP and 260 HP, providing versatility for various industrial setups.
| Specification | Value |
| Power (kW) | 110 |
| Power (HP) | 150 |
| Current (A) | 214 |
| Starting Current Ratio | 5.8 |
| P1 (W) | 123596 |
| Speed (rpm) | 1500 |
| Flanging | 12″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6% / -10% |
| Max. starts | 5/h |
| Max operating depth | 300 m |
| Max operating temperature | 60 bar |
| Horizontal operation | 180 HP – 260 HP |
Dab 150 HP Submersible Motor TR12-110 kW-380 V-T Applications
- Underwater exploration and subsea equipment
- Deep-sea oil and gas extraction machinery
- Heavy industrial machinery and manufacturing
- Large-scale pumping and fluid transfer systems
Dab 150 HP Submersible Motor TR12-110 kW-380 V-T Benefits
- High power output suitable for demanding tasks
- Excellent protection against dust and water ingress
- Flexible operation with adjustable power levels
- Reliable performance in harsh environments
Dab 150 HP Submersible Motor TR12-110 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 150 HP Submersible Motor TR12-110 kW-380 V-T Price | Contact us |
