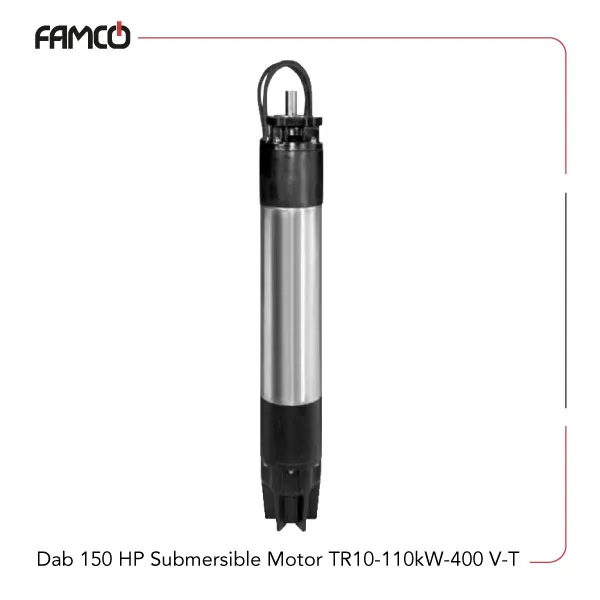

Dab 150 HP Submersible Motor TR10-110 kW-400 V-T Specifications
Dab 150 HP submersible motor TR10-110 kW-400 V-T features a high-performance 110 kW (150 HP) motor engineered for demanding industrial and marine applications. Operating at 3000 rpm, it incorporates a 10-inch flanging interface compatible with a wide range of installation configurations. This Dab motor is supplied with an IP58 protection rating, with an optional upgrade to IP68 for environments requiring enhanced resistance to dust and water ingress. Designed for submersible operation, the unit can function reliably at depths of up to 300 meters and withstand pressures of up to 60 bar. Thermal management is supported by a cooling flow speed of 0.5 meters per second, ensuring stable operation under continuous load. The motor accommodates a power supply tolerance of +6% to -10%, providing reliable performance under variable electrical conditions. It supports up to eight starts per hour, with a starting current ratio of 5.7 and a current draw of 217 amperes. Additionally, the motor is suitable for horizontal configurations within a power range of 100 HP to 230 HP, offering flexibility for various operational requirements.
| Specification | Value |
| Power (kW) | 110 |
| Power (HP) | 150 |
| Current (A) | 217 |
| Starting Current Ratio | 5.7 |
| P1 (W) | 125000 |
| Speed (rpm) | 3000 |
| Flanging | 10″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6%/-10% |
| Max. starts | 8/h |
| Max operating depth | 300 m |
| Max operating temperature | 60 bar |
| Horizontal operation | 100 HP-230 HP |
Dab 150 HP Submersible Motor TR10-110 kW-400 V-T Applications
- Underwater exploration and subsea equipment
- Marine propulsion systems
- Industrial machinery requiring high power
- Deep-sea oil and gas extraction
Dab 150 HP Submersible Motor TR10-110 kW-400 V-T Benefits
- High power output for demanding tasks
- Durable protection against dust and water
- Suitable for deep-sea environments
- Flexible operation with multiple starts
Dab 150 HP Submersible Motor TR10-110 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 150 HP Submersible Motor TR10-110 kW-400 V-T Price | Contact us |
