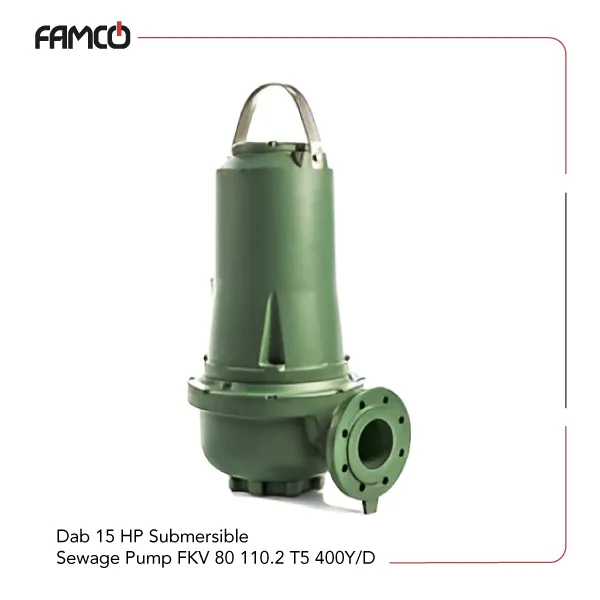

Dab 15 HP Submersible Sewage Pump FKV 80 110.2 T5 400Y/D Specifications
This heavy-duty pump features a vortex impeller designed for efficient handling of solids ranging from 65 to 100 mm. It operates within a fluid pH range of 6.5 to 12, making it suitable for various wastewater and industrial applications. The pump can manage fluid temperatures from 0°C up to 40°C, ensuring versatility in different environments. It is capable of reaching a maximum installation depth of 20 meters, which is ideal for submerged operations. This FKV series Dab submersible pump comes with vortex impellers, made of durable cast iron, providing strength and longevity. The mechanical seals on the pump side are made of silicon carbide (SiC/SiC), offering excellent wear resistance, while the motor side seals are SiC/Carbon, ensuring reliable sealing under demanding conditions. The Dab sewage pump can deliver a maximum head of 41.2 meters and a flow rate of up to 1800 liters per minute, making it suitable for high-capacity applications. Powered by a 400V three-phase supply, it consumes 11 kW (15 HP), and weighs approximately 202 kg, indicating a robust and sturdy construction designed for continuous operation in industrial settings.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 41.2 m |
| Max flow rate | 1800 l/min |
| Three-phase voltage | 400 V |
| Power | 11 kW |
| Power (HP) | 15 HP |
| Weight | 202 kg |

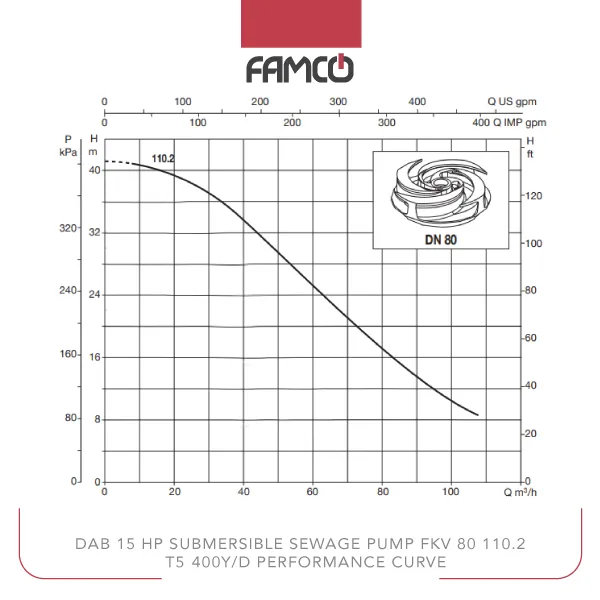

Dab 15 HP Submersible Sewage Pump FKV 80 110.2 T5 400Y/D Performance Curve
| m3 /h | 0 | 7.2 | 14.4 | 21.6 | 28.8 | 36 | 43.2 | 50.4 | 57.6 | 64.8 | 72 | 79.2 | 86.4 | 93.6 | 100.8 | 108 |
| l/min | 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 | 1080 | 1200 | 1320 | 1440 | 1560 | 1680 | 1800 |
| Head (m) | 41.2 | 41 | 40.5 | 39.2 | 37.4 | 35.2 | 32.6 | 29.7 | 26.6 | 23.5 | 20.3 | 17.3 | 14.6 | 12.1 | 10 | 8.5 |
Dab 15 HP Submersible Sewage Pump FKV 80 110.2 T5 400Y/D Applications
- Wastewater treatment plants
- Industrial fluid transfer
- Sewage pumping systems
- Flood control and drainage
Dab 15 HP Submersible Sewage Pump FKV 80 110.2 T5 400Y/D Benefits
- Handles solids up to 100 mm efficiently
- Durable cast iron construction for longevity
- High flow rate and maximum head for demanding tasks
- Reliable seals and motor for continuous operation
Dab 15 HP Submersible Sewage Pump FKV 80 110.2 T5 400Y/D Price List
| No. | Name | Price |
| 1 | Dab 15 HP Submersible Sewage Pump FKV 80 110.2 T5 400Y/D Price | Contact us |
