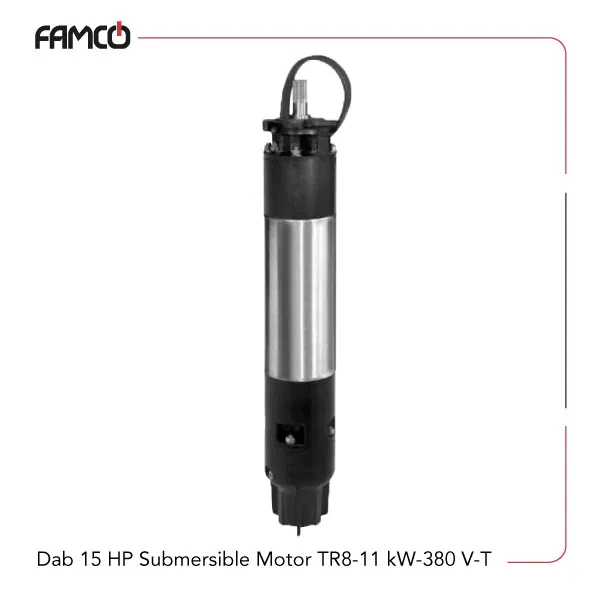

Dab 15 HP Submersible Motor TR8-11 kW-380 V-T Specifications
Dab submersible motor TR8-11 kW-380 V-T is equipped with a robust 11 kW (15 HP) motor designed for demanding industrial applications. It operates at 1500 RPM and draws a current of 26 amperes, with a starting current ratio of 5.0 to ensure dependable startup performance. The motor’s operating power consumption is approximately 13,750 watts. It features an 8-inch NEMA flanging system for secure and stable mounting. With an IP58 protection rating, upgradeable to IP68 upon request, this Dab submersible motor provides strong resistance to dust and water ingress. Cooling is achieved through a flow speed of 0.5 meters per second, ensuring effective heat dissipation during continuous duty. The power supply tolerance range of +6% to –10% enables reliable operation under variable voltage conditions. The motor supports up to 10 starts per hour and is engineered for operation at depths up to 300 meters, withstanding pressures up to 60 bar.
| Specification | Value |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Current (A) | 26 |
| Starting Current Ratio | 5.0 |
| P1 (W) | 13750 |
| Speed (rpm) | 1500 |
| Flanging | NEMA 8″ |
| Protection Class | IP58(IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 15 HP Submersible Motor TR8-11 kW-380 V-T Applications
- Water pumping systems
- Industrial machinery
- Deep well applications
- Heavy-duty manufacturing equipment
Dab 15 HP Submersible Motor TR8-11 kW-380 V-T Benefits
- High power output for demanding tasks
- Excellent water and dust resistance
- Reliable performance with multiple starts per hour
- Suitable for deep and high-temperature environments
Dab 15 HP Submersible Motor TR8-11 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 15 HP Submersible Motor TR8-11 kW-380 V-T Price | Contact us |
