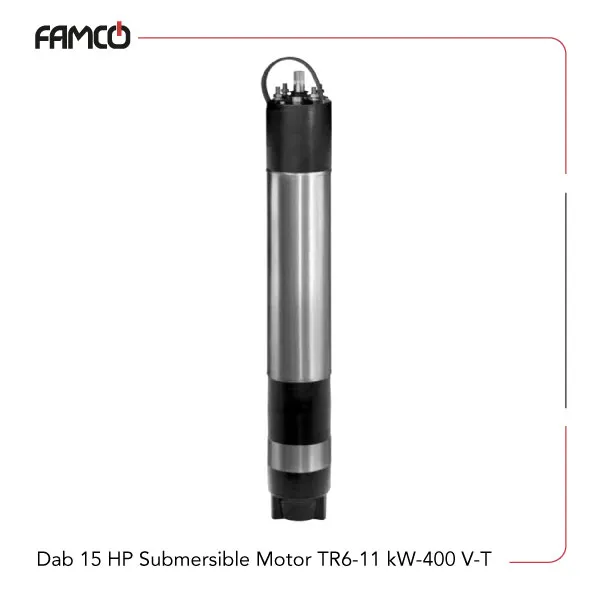

Dab 15 HP Submersible Motor TR6-11 kW-400 V-T Specifications
Dab submersible motor TR6-11 kW-400 V-T integrates an 11 kW (15 HP) motor engineered for efficient and reliable performance in a wide range of industrial applications. It operates at 3000 rpm and draws 25 amperes under nominal load. The starting current ratio of 3.7 enables smooth and consistent motor startup. A NEMA 6-inch flanging interface ensures secure, standardized mounting and mechanical compatibility with common installation requirements. This Dab motor is rated IP68, providing superior protection against dust and water ingress and enabling operation in harsh or submerged environments. Thermal management is supported by a cooling flow rate of 0.5 meters per second, maintaining stable operating temperatures during continuous duty. The motor accommodates power supply variations within a +6% to –10% tolerance range and supports up to 15 starts per hour.
| Specification | Value |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Current (A) | 25 |
| Starting Current Ratio | 3.7 |
| P1 (W) | 14103 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 6″ |
| Protection Class | IP68 |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 15/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 7.5 HP – 50 HP |
Dab 15 HP Submersible Motor TR6-11 kW-400 V-T Applications
- Underwater pumping systems
- Industrial automation machinery
- Heavy-duty manufacturing equipment
- High-pressure water systems
Dab 15 HP Submersible Motor TR6-11 kW-400 V-T Benefits
- High durability with IP68 protection class
- Reliable performance at high depths and temperatures
- Flexible operation range from 7.5 HP to 50 HP
- Supports frequent starts with a maximum of 15 per hour
Dab 15 HP Submersible Motor TR6-11 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 15 HP Submersible Motor TR6-11 kW-400 V-T Price | Contact us |
