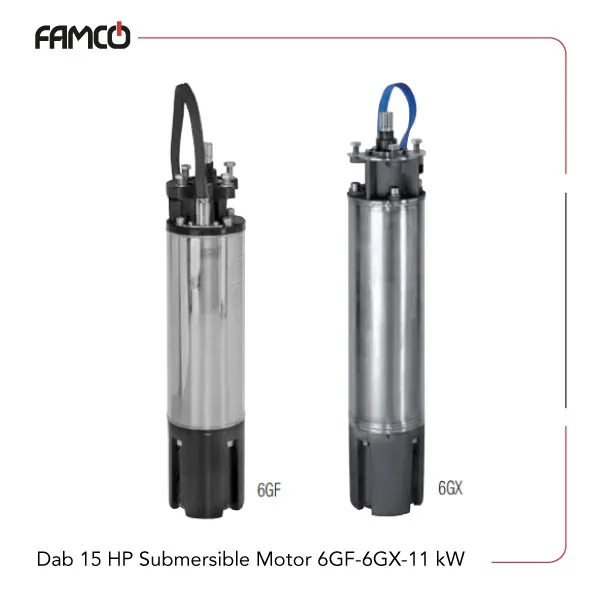

Dab 15 HP Submersible Motor 6GF/6GX-11 kW Specifications
This motor has a power output of 11 kW (15 HP) and operates at a speed of 3000 rpm. It draws a current of 44.2 amperes and has a starting current ratio of 4.4. The P1 power consumption is 13,860 watts, which supports use in demanding applications. A NEMA 6-inch flange provides secure mounting and connection. The insulation class is F, which supports strong thermal tolerance, and the IP68 protection class provides full protection against dust and water ingress. The cooling system requires a minimum flow speed of 0.3 meters per second at an ambient temperature of 35°C to maintain proper operating conditions. The power supply tolerance allows voltage variations of +6% to −10%, supporting stable electrical operation. The motor supports up to 25 starts per hour and suits intermittent duty cycles.
| Model | 230V | 400V | 415V |
| Current (A) | 44.2 | 25.5 | 26 |
| Starting Current Ratio | 4.4 | 4.4 | 4.8 |
| Power (kW) | 11 | ||
| Power (HP) | 15 | ||
| P1 (W) | 13860 | ||
| Speed (rpm) | 3000 | ||
| Flanging | NEMA 6″ | ||
| Insulation Class | F | ||
| Protection Class | IP68 | ||
| Cooling Flow Speed | min. 0,3 m/s 35 °C | ||
| Power Supply Tolerance | +6%/-10% | ||
| Max Starts | 25/h | ||
| Max Operating Depth | 300 m | ||
| Horizontal Operation | 5,5 HP – 50 HP | ||
Dab 15 HP Submersible Motor 6GF/6GX-11 kW Applications
- Deep-sea pumping systems
- Industrial machinery requiring high power
- Marine equipment and underwater operations
- Heavy-duty industrial automation
Dab 15 HP Submersible Motor 6GF/6GX-11 kW Benefits
- High power output for demanding tasks
- Excellent protection against dust and water
- Reliable performance with multiple starts per hour
- Versatile for various industrial and marine uses
Dab 15 HP Submersible Motor 6GF/6GX-11 kW Price List
| No. | Name | Price |
| 1 | Dab 15 HP Submersible Motor 6GF/6GX-11 kW Price | Contact us |
