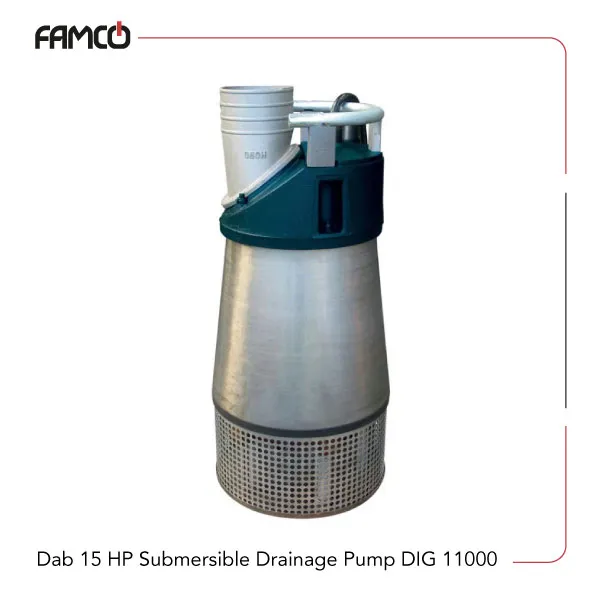

Dab 15 HP Submersible Drainage Pump DIG 11000 Specifications
Dab submersible drainage pump DIG 11000 features a three-phase motor with a power output of 15 HP, equivalent to 11 kW. It is designed to handle high flow rates, with a maximum of 132 cubic meters per hour or 2200 liters per minute. This Dab drainage pump can operate at a maximum head of 58 meters for APT models and 32 meters for MPT models, providing versatile performance for various setups. It supports a voltage of 400V and has a weight of 165 kg, ensuring durability and stability during operation. The device is capable of functioning within a liquid temperature range from 0°C to 35°C. It can be immersed up to 20 meters deep, provided the cable length is adequate. The motor is protected with an IP 68 rating, offering excellent resistance to dust and water ingress, and features insulation class F for safety and efficiency. The pump’s design emphasizes robustness and reliability, ideal for industrial or large-scale water management tasks.
| Specification | APT | MPT |
| Max P1 (kW) | 136 | 12.5 |
| Current (A) | 22.5 | 21.5 |
| Pipe DNM | 4″ | 6″ |
| Maximum head (m) | 58 | 32 |
| Number of phases | Three-phase | |
| Power (HP) | 15 | |
| Power (kW) | 11 | |
| Maximum Flow rate (m3/h) | 132 | |
| Maximum Flow rate (l/min) | 2200 | |
| Voltage (V) | 400 | |
| Weight (kg) | 165 | |
| Liquid temperature range | 0 °C to 35 °C | |
| Maximum immersion depth | 20 metres (with cable of appropriate length) | |
| Motor protection class | IP 68 | |
| Insulation class | F | |

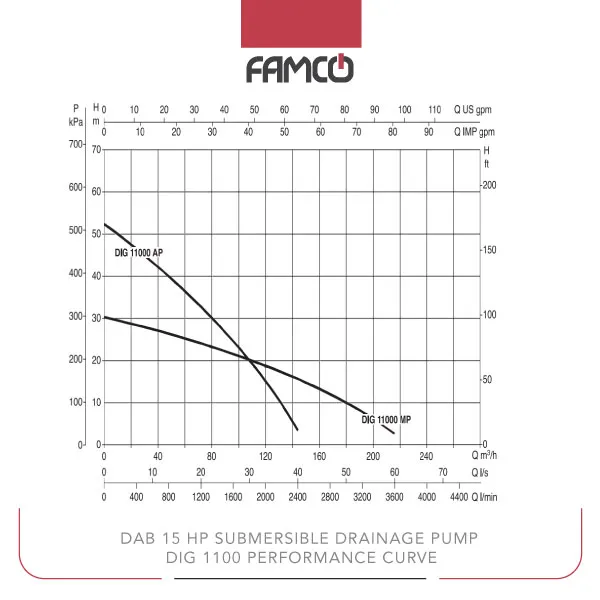

Dab 15 HP Submersible Drainage Pump DIG 11000 Performance Data
Dab 15 HP Submersible Drainage Pump DIG 11000 Applications
- Industrial water transfer
- Deep well pumping
- Irrigation systems
- Drainage and flood control
Dab 15 HP Submersible Drainage Pump DIG 11000 Benefits
- High flow capacity for demanding tasks
- Durable and reliable construction
- Suitable for deep immersion up to 20 meters
- Excellent protection against dust and water
Dab 15 HP Submersible Drainage Pump DIG 11000 Price List
| No. | Name | Price |
| 1 | Dab 15 HP Submersible Drainage Pump DIG 11000 Price | Contact us |
