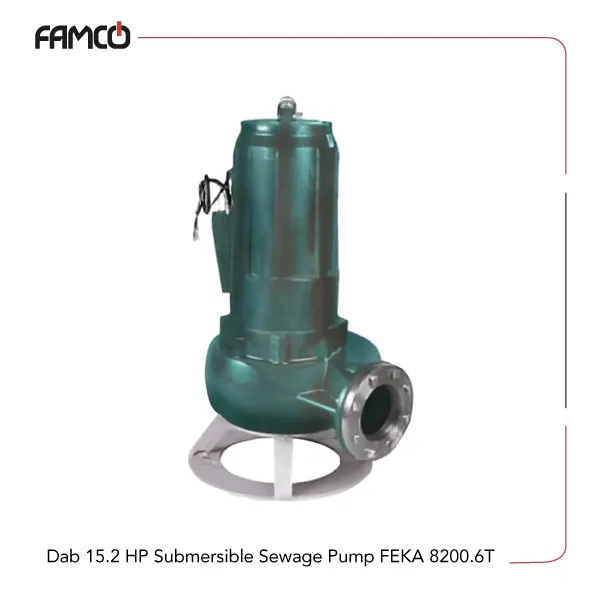

Dab 15.2 HP Submersible Sewage Pump FEKA 8200.6T Specifications
Equipped with a sturdy cast iron three-channel closed impeller, the FEKA 8200.6T model offers powerful performance ideal for demanding sewage and wastewater applications. Solids up to 80 mm pass easily through this pump, making it highly effective for fluid management tasks where debris is present. Operating within a pH range of 6 to 11 and handling liquids between 0°C and 40°C, it adapts well to various industrial and municipal environments. The pump’s design allows it to be installed submerged up to 20 meters, either fixed with a coupling device or positioned freely in a vertical setup. Thanks to continuous duty capability, it maintains reliable operation even under prolonged use. With a 15.2 HP motor delivering 11.4 kW of power and a flow rate that reaches 10,000 liters per minute, this Dab submersible pump solution ensures efficient and robust pumping. Recognized widely as a leading Dab sewage pump, it balances heavy-duty capacity with durable construction, making it a trusted choice for water management professionals.
| Specification | Value |
| Impeller Type | three-channel, closed |
| Free Passage | 80 mm |
| pH Range | 6 to 11 |
| Liquid Temperature Range | 0°C to +40°C |
| Max Immersion Depth | 20 m |
| Installation | fixed using a coupling device, or free in the vertical position |
| Operation | Continuous duty with completely submerged pump |
| Impeller Material | cast-iron |
| Max Delivery Head | 11.2 m |
| Max Flow Rate | 10000 l/min |
| Three-phase Voltage | 400 V |
| Power | 11.4 kW |
| Power (HP) | 15.2 HP |
| Weight | 460 kg |

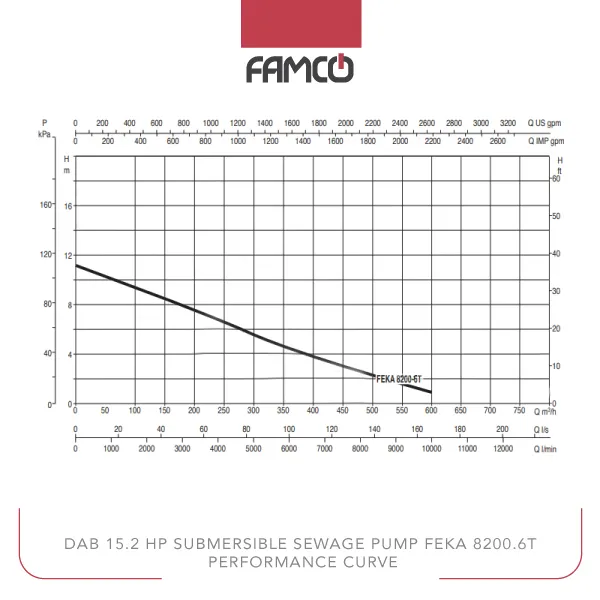

Dab 15.2 HP Submersible Sewage Pump FEKA 8200.6T Performance Data
| m3 /h | 0 | 24 | 36 | 48 | 60 | 72 | 90 | 108 | 126 | 150 | 180 | 210 | 240 | 270 | 300 | 360 | 420 | 480 | 600 |
| l/min | 0 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2100 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 6000 | 7000 | 8000 | 10000 |
| Head (m) | 11.2 | 18 | 10.5 | 10.3 | 9.97 | 9.7 | 9.5 | 9.2 | 8.8 | 8.46 | 8 | 7.4 | 6.95 | 6.3 | 5.6 | 4.4 | 3.6 | 2.67 | 1.07 |
Dab 15.2 HP Submersible Sewage Pump FEKA 8200.6T Applications
- Water transfer in industrial plants
- Chemical processing and handling
- Deep water sump pumping
- Flood control and drainage systems
Dab 15.2 HP Submersible Sewage Pump FEKA 8200.6T Benefits
- High flow rate for large volume transfer
- Durable cast-iron impeller for long-lasting use
- Flexible installation options for various setups
- Reliable continuous operation in demanding environments
Dab 15.2 HP Submersible Sewage Pump FEKA 8200.6T Price List
| No. | Name | Price |
| 1 | Dab 15.2 HP Submersible Sewage Pump FEKA 8200.6T Price | Contact us |
