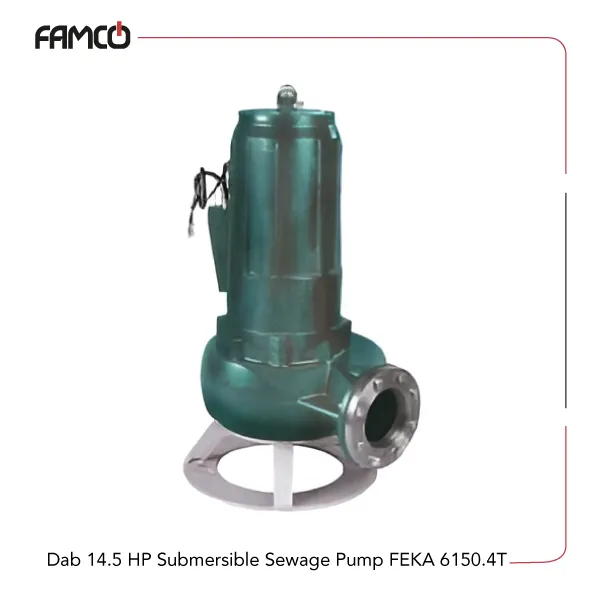

Dab 14.5 HP Submersible Sewage Pump FEKA 6150.4T Specifications
This pump features a single-channel, closed impeller made of durable cast iron, designed for efficient operation in various conditions. It can handle liquids with pH levels from 6 to 11 and operate within a temperature range of 0°C to 40°C. The FEKA series Dab sewage pump allows for a free solids passage of 95 to 108 mm, making it suitable for handling semi-solid materials. It can be installed either fixed with a coupling device or freely in a vertical position, and it is capable of continuous operation when fully submerged. The maximum installation depth is 20 meters, providing flexibility for different setups. This Dab submersible pump runs on a three-phase power supply of 400 V and delivers a maximum head of 17 meters with a flow rate up to 5000 liters per minute. The motor consumes 10.9 kW (14.5 HP) and the entire unit weighs 212 kg, ensuring robust performance for demanding applications.
| Specification | Value |
| Type of impeller | single-channel, closed |
| Free solids passage (mm) | 95-108 |
| PH of the liquid | 6 to 11 |
| Liquid temperature range | 0°C to +40°C |
| Maximum installation depth | 20 metres |
| Installation | fixed using a coupling device, or free in the vertical position |
| Continuous duty | yes, with completely submerged pump |
| Impeller material | cast iron |
| Three-phase voltage | 400 V |
| Maximum delivery head (m) | 17 |
| Maximum flow rate (l/min) | 5000 |
| Power (kW) | 10.9 |
| Power (HP) | 14.5 |
| Weight (kg) | 212 |

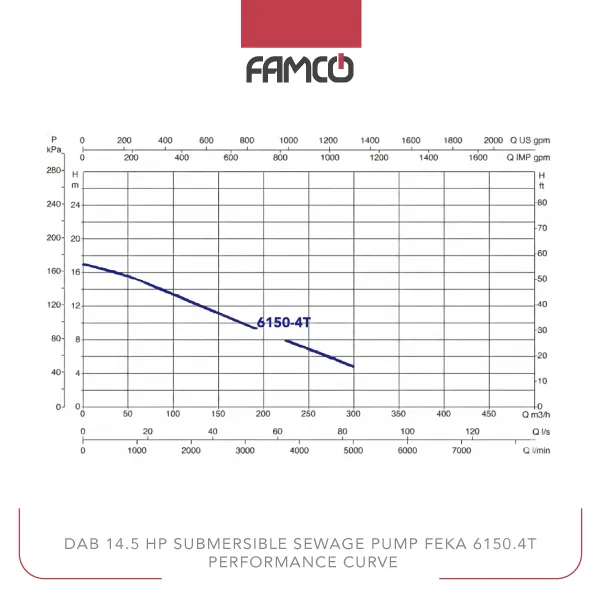

Dab 14.5 HP Submersible Sewage Pump FEKA 6150.4T Performance Curve
| m3/h | 0 | 24 | 36 | 48 | 60 | 72 | 90 | 108 | 126 | 150 | 180 | 210 | 240 | 270 | 300 |
| l/min | 0 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2100 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
| head (m) | 17 | 16.3 | 16.1 | 15.8 | 15.4 | 14.9 | 14 | 13.3 | 12.1 | 11.6 | 10.1 | 8.4 | 7.7 | 5.9 | 4.8 |
Dab 14.5 HP Submersible Sewage Pump FEKA 6150.4T Applications
- Water treatment plants
- Municipal drainage systems
- Industrial fluid transfer
- Deep well pumping
Dab 14.5 HP Submersible Sewage Pump FEKA 6150.4T Benefits
- High flow rate up to 5000 l/min for efficient operation
- Robust cast iron impeller for durability
- Suitable for liquids with pH 6-11 and temperatures up to 40°C
- Flexible installation options for various setups
Dab 14.5 HP Submersible Sewage Pump FEKA 6150.4T Price List
| No. | Name | Price |
| 1 | Dab 14.5 HP Submersible Sewage Pump FEKA 6150.4T Price | Contact us |
