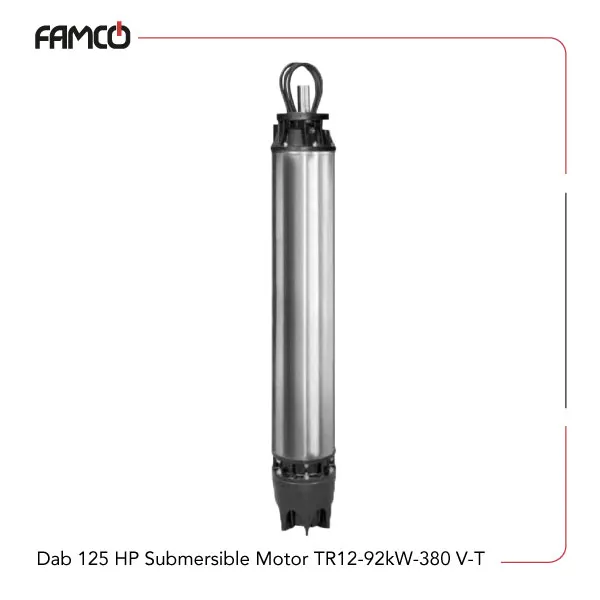

Dab 125 HP Submersible Motor TR12-92 kW-380 V-T

92 kW (125 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Dab 125 HP Submersible Motor TR12-92 kW-380 V-T

Dab 125 HP submersible motor TR12-92 kW-380 V-T is built to deliver substantial output in demanding underwater settings. It operates at 92 kW, which corresponds to 125 HP, giving it the strength needed for deep-level pumping tasks. During operation, it draws 182 A, and when started, it reaches a starting current ratio of 6.5, a characteristic important for understanding its electrical behavior at power-up.

Related Products

Dab 125 HP Submersible Motor TR12-92 kW-380 V-T Specifications

This industrial motor delivers a robust power output of 92 kW (125 HP), making it suitable for demanding operational environments. It draws 182 A and features a starting current ratio of 6.5, ensuring dependable startup performance. During operation, the motor consumes approximately 103,371 W and runs at 1500 rpm, providing consistent and efficient performance. The unit is equipped with a 12-inch flanged connection for secure mounting. Dab submersible pump motor carries an IP58 protection rating, with an optional upgrade to IP68 for applications requiring enhanced resistance to water ingress. A cooling flow velocity of 0.5 m/s ensures effective thermal regulation during continuous duty. The motor accommodates a power supply tolerance of +6% / −10%, enabling stable operation despite minor voltage fluctuations. Engineered for durability, the motor supports up to five starts per hour and is capable of operating at underwater depths of up to 300 m, withstanding pressures up to 60 bar.

Dab 125 HP Submersible Motor TR12-92 kW-380-V-T

Specification Value
Power (kW) 92
Power (HP) 125
Current (A) 182
Starting Current Ratio 6.5
P1 (W) 103371
Speed (rpm) 1500
Flanging 12″
Protection class IP58 (IP68 on request)
Cooling flow speed 0.5 m/s
Power supply tolerance +6% / -10%
Max. starts 5/h
Max operating depth 300 m
Max operating temperature 60 bar
Horizontal operation 180 HP – 260 HP

Dab 125 HP Submersible Motor TR12-92 kW-380 V-T Applications

  • Underwater equipment and submersible systems
  • Heavy machinery in manufacturing plants
  • Oil and gas exploration equipment
  • Industrial pumping and processing systems



Dab 125 HP Submersible Motor TR12-92 kW-380 V-T Benefits

  • High power output for demanding tasks
  • Durable protection with IP58/IP68 ratings
  • Reliable operation at great depths and high pressures
  • Flexible installation with various power ranges



Dab 125 HP Submersible Motor TR12-92 kW-380 V-T Price List

No. Name Price
1 Dab 125 HP Submersible Motor TR12-92 kW-380 V-T Price Contact us
Brand

Power (HP)

Power (kW)

Speed (RPM)

Degree of Protection

Current (A)
