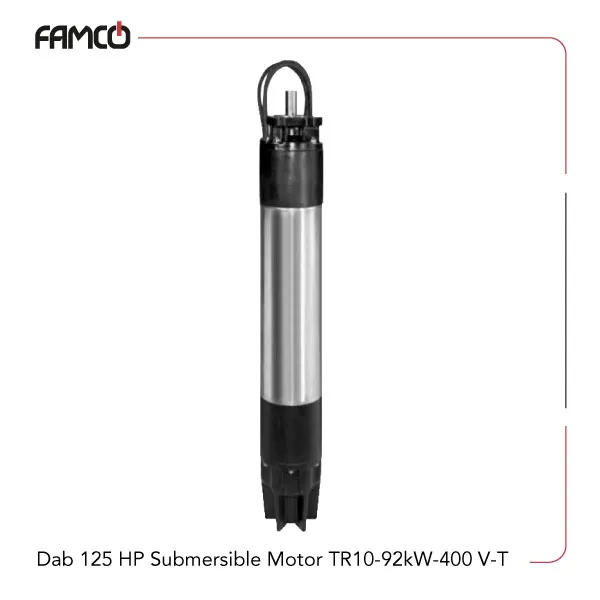

Dab 125 HP Submersible Motor TR10-92 kW-400 V-T

Dab 125 HP submersible motor TR10-92 kW-400 V-T Specifications

Dab 125 HP submersible motor TR10-92 kW-400 V-T  delivers 92 kW (125 HP) of power, making it suitable for demanding industrial applications. It operates at a speed of 3000 rpm and draws a current of 185 amperes. The motor features a flanging size of 10 inches and is protected by an IP58 rating, with an option for IP68 upon request, ensuring durability in harsh environments. This Dab submerged motor can withstand a maximum operating depth of 300 meters and a pressure of 60 bar, ideal for underwater or deep-sea operations. The cooling system maintains a flow speed of 0.5 meters per second, which helps prevent overheating during continuous use. The power supply tolerance is set at +6%/-10%, allowing some flexibility in voltage fluctuations. The motor can be started up to 8 times per hour, making it suitable for applications requiring frequent startups. It is designed for horizontal operation within the power range of 100 HP to 230 HP, providing versatility for various industrial tasks. The motor’s robust construction and high efficiency make it a reliable choice for heavy-duty operations, especially in environments demanding high power and durability.

Dab 125 HP Submersible Motor TR10-92 kW-400 V-T Applications

• Underwater exploration and subsea equipment
• Deep-sea oil and gas extraction
• Heavy industrial machinery
• Marine and underwater robotics

Dab 125 HP Submersible Motor TR10-92 kW-400 V-T Benefits

• High power output for demanding tasks
• Durable protection against harsh environments
• Flexible operation with multiple starts per hour
• Suitable for deep-sea and underwater applications

Dab 125 HP Submersible Motor TR10-92 kW-400 V-T Price List
