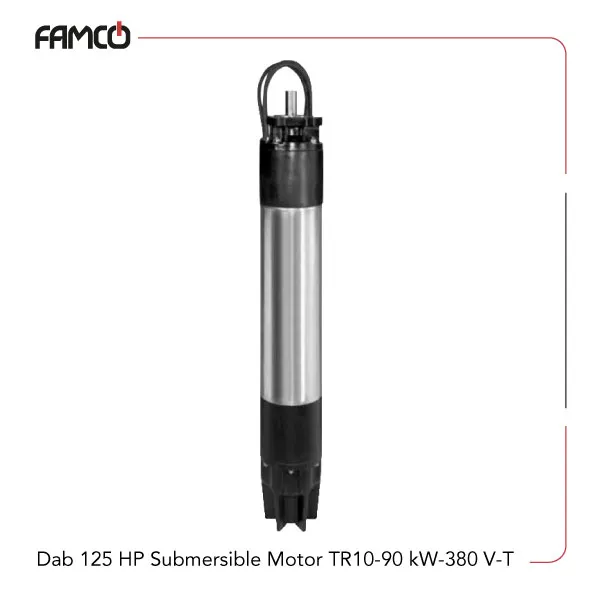

Dab 125 HP Submersible Motor TR10-90 kW-380 V-T

Dab 125 HP Submersible Motor TR10-90 kW-380 V-T Specifications

Dab 125 HP submersible motor TR10-90 kW-380 V-T delivers a robust power output of 90 kW (125 HP), making it well-suited for demanding and continuous-duty applications. Operating at 1500 rpm, the unit draws 190 amperes and supports stable performance across a wide range of load conditions. This Dab motor features a 10-inch flanging interface, enabling compatibility with diverse mounting and equipment configurations. The motor is rated IP58 for protection against dust and water ingress, with an IP68 option available for environments requiring enhanced sealing and durability. Cooling is supported by a flow velocity of 0.5 meters per second, ensuring effective thermal management during operation. Its power supply tolerance of +6% to -10% provides reliable operation even under fluctuating electrical conditions. Engineered for intermittent or repetitive cycles, the motor supports up to eight starts per hour. It is also designed for submersible applications, operating at depths of up to 300 meters and withstanding pressures of up to 60 bar. For horizontal installations, it accommodates power ranges from 100 HP to 230 HP, offering flexibility across various industrial processes.

Dab 125 HP Submersible Motor TR10-90 kW-380 V-T Applications

• Underwater drilling and subsea operations
• Industrial pumping systems
• Marine equipment and underwater machinery
• Heavy-duty manufacturing processes

Dab 125 HP Submersible Motor TR10-90 kW-380 V-T Benefits

• High power output for demanding tasks
• Excellent protection against dust and water
• Durable design suitable for harsh environments
• Flexible operation with adjustable depth and mounting options
