Dab 12.5 HP Submersible Motor TR6-9.2 kW-400 V-T Specifications

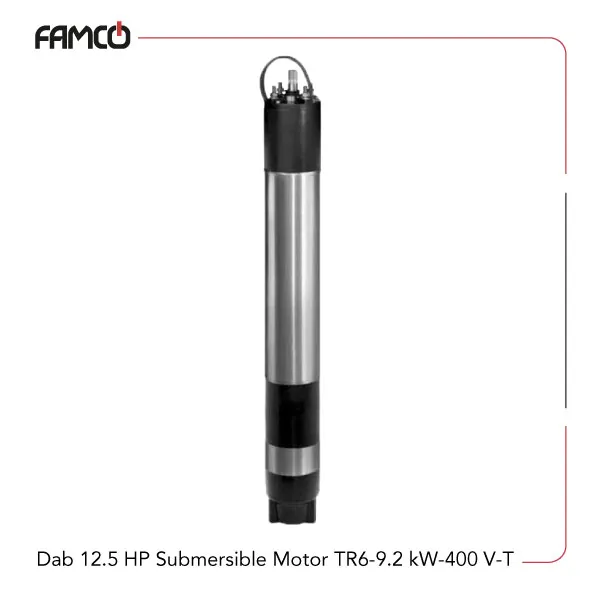

Dab 12.5 HP submersible motor TR6-9.2 kW-400 V-T is equipped with a 9.2 kW (12.5 HP) motor engineered for continuous operation at 3000 rpm. It features a starting current ratio of 3.6 and draws 21 amperes under nominal load. The motor’s operational input power is approximately 11,948 watts. A NEMA 6-inch flanging interface is incorporated to ensure secure, standardized mounting and mechanical stability. The motor carries an IP68 protection rating, delivering high resistance to dust and water ingress, making Dab submersible motor TR6-9.2 kW-400 V-T suitable for deployment in demanding or submerged environments. Thermal management is achieved through a cooling flow rate of 0.5 meters per second, enabling efficient heat dissipation during continuous duty.
| Specification | Value |
| Power (kW) | 9.2 |
| Power (HP) | 12.5 |
| Current (A) | 21 |
| Starting Current Ratio | 3.6 |
| P1 (W) | 11948 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 6″ |
| Protection Class | IP68 |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 15/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 7.5 HP – 50 HP |
Dab 12.5 HP Submersible Motor TR6-9.2 kW-400 V-T Applications
- Water pumping systems
- Underwater equipment
- Industrial machinery
- Marine applications
Dab 12.5 HP Submersible Motor TR6-9.2 kW-400 V-T Benefits
- High durability and water resistance
- Reliable performance at great depths
- Flexible power supply tolerance
- Suitable for continuous and demanding use
