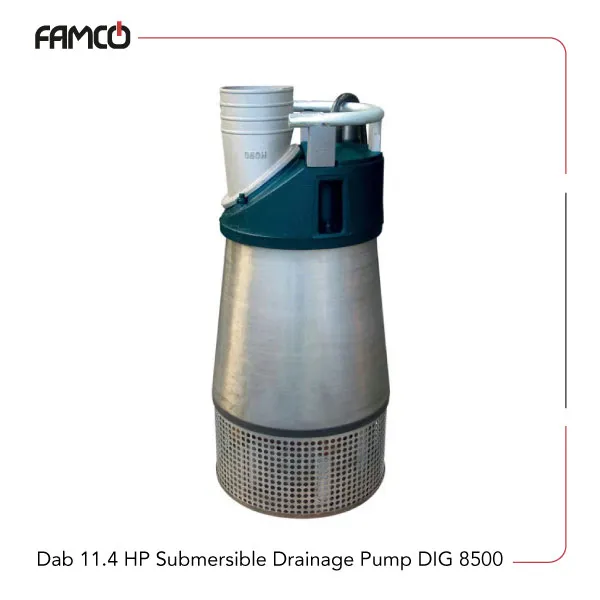

Dab 11.4 HP Submersible Drainage Pump DIG 8500

Dab 11.4 HP Submersible Drainage Pump DIG 8500 Specifications

Dab 11.4 HP submersible drainage pump DIG 8500 delivers a power output of 11.4 HP (8.5 kW), making it suitable for high-demand water-handling tasks. It supports a maximum P1 of 10.4 kW in APT mode and 9.9 kW in MPT mode, with corresponding current ratings of 19 A and 16 A. The APT version uses a 4-inch pipe connection, while the MPT version uses a 6-inch connection, allowing the pump to reach flow rates of up to 132 m³/h, or 2,200 liters per minute. This Dab draiange pump can achieve a maximum head of 45 meters in APT mode and 23 meters in MPT mode, providing strong vertical lift capacity for a wide range of applications. It operates at 400 V and weighs approximately 150 kg, giving it a solid and stable operating profile. The pump is suitable for liquids between 0°C and 35°C and can be submerged to a depth of up to 20 meters, assuming the cable length accommodates this. The motor carries an IP68 protection rating, offering full protection during continuous submersion, and is built with insulation class F, supporting safe thermal performance during prolonged use.

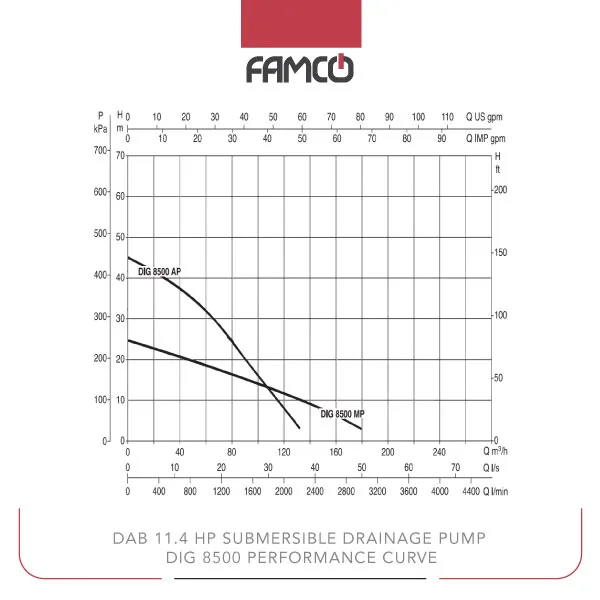

Dab 11.4 HP Submersible Drainage Pump DIG 8500 Performance Data

Dab 11.4 HP Submersible Drainage Pump DIG 8500 Applications

• Irrigation systems in agriculture
• Water supply for industrial facilities
• Drainage and flood control
• Deep well water extraction

Dab 11.4 HP Submersible Drainage Pump DIG 8500 Benefits

• High flow capacity for large-scale projects
• Durable construction with IP 68 protection
• Operates efficiently within a wide temperature range
• Suitable for deep immersion up to 20 meters

Dab 11.4 HP Submersible Drainage Pump DIG 8500 Price List
