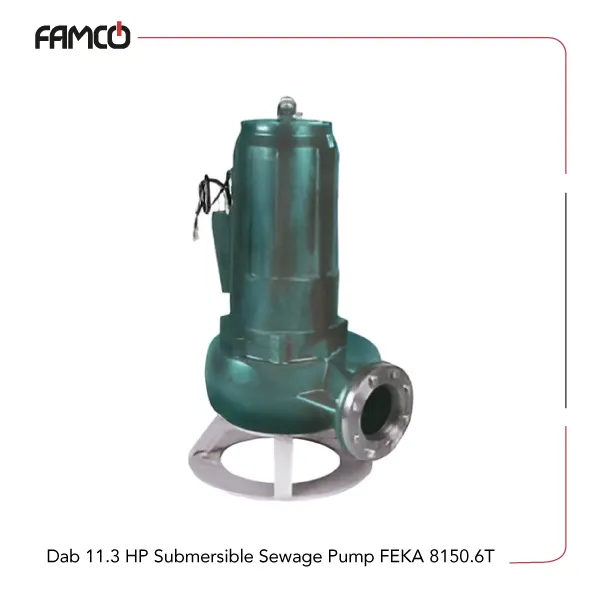

Dab 11.3 HP Submersible Sewage Pump FEKA 8150.6T Specifications
This pump features a cast iron three-channel closed impeller, capable of passing solids up to 80 mm, making it well-suited for heavy sewage and wastewater management. Operating within a pH range of 6 to 11 and fluid temperatures from 0°C to 40°C, it can be installed at depths up to 20 meters. Designed for continuous duty, the Dab submersible pump operates fully submerged and can be fixed or used free in a vertical position. With a maximum head of 8.53 meters and a flow rate of 8000 liters per minute, this Dab sewage pump runs on an 11.3 HP (8.5 kW), 400 V three-phase motor and weighs 450 kg, offering sturdy, reliable performance.
| Specification | Value |
| Impeller Type | three-channel, closed |
| Free Passage | 80 mm |
| pH of Liquid | 6 to 11 |
| Liquid Temperature Range | 0°C to +40°C |
| Max. Immersion Depth | 20 m |
| Installation | fixed using a coupling device, or free in the vertical position |
| Operation | Continuous duty with completely submerged pump |
| Impeller Material | cast-iron |
| Max. Delivery Head | 8.53 m |
| Max. Flow Rate | 8000 l/min |
| Three-phase Voltage | 400 V |
| Power | 8.5 kW |
| Power (HP) | 11.3 HP |
| Weight | 450 kg |

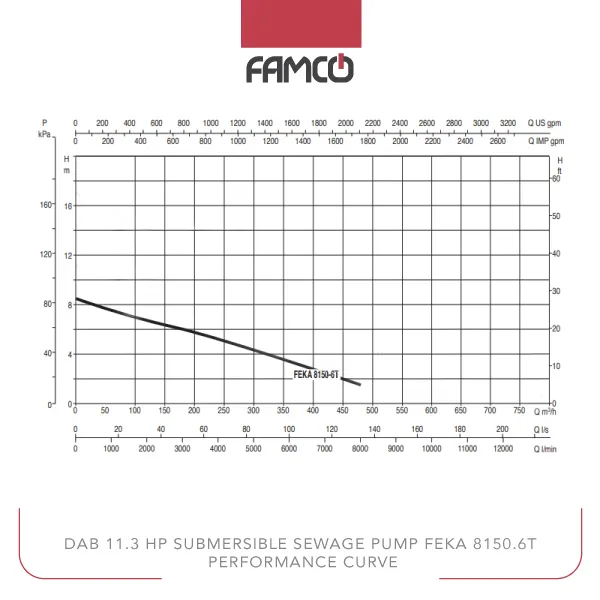

Dab 11.3 HP Submersible Sewage Pump FEKA 8150.6T Performance Data
| m3 /h | 0 | 24 | 36 | 48 | 60 | 72 | 90 | 108 | 126 | 150 | 180 | 210 | 240 | 270 | 300 | 360 | 420 | 480 |
| l/min | 0 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2100 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 6000 | 7000 | 8000 |
| Head (m) | 8.53 | 8.05 | 7.83 | 7.6 | 7.45 | 7.3 | 7.15 | 6.9 | 6.7 | 6.45 | 6 | 5.6 | 5.24 | 4.6 | 4.2 | 3.34 | 2.34 | 1.56 |
Dab 11.3 HP Submersible Sewage Pump FEKA 8150.6T Applications
- Water transfer in industrial plants
- Drainage and flood control
- Wastewater management
- Fluid handling in construction sites
Dab 11.3 HP Submersible Sewage Pump FEKA 8150.6T Benefits
- High flow rate for efficient liquid transfer
- Durable cast-iron impeller ensures long-lasting performance
- Flexible installation options for different setups
- Suitable for a wide range of liquids within specified pH and temperature
Dab 11.3 HP Submersible Sewage Pump FEKA 8150.6T Price List
| No. | Name | Price |
| 1 | Dab 11.3 HP Submersible Sewage Pump FEKA 8150.6T Price | Contact us |
