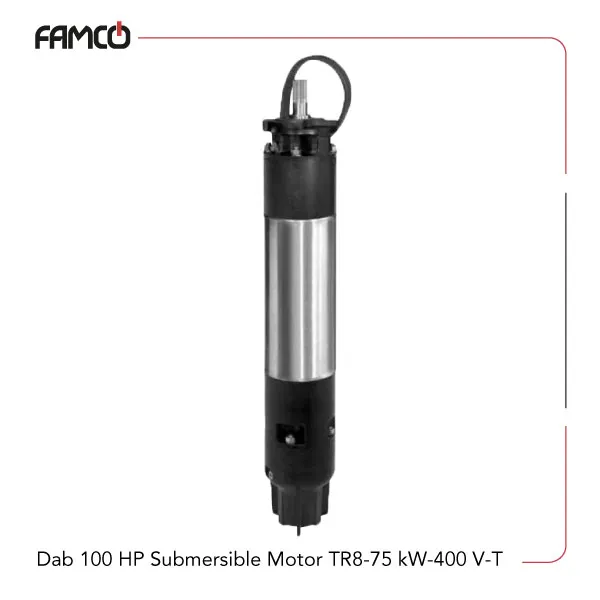

Dab 100 HP Submersible Motor TR8-75 kW-400 V-T

75 kW (100 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: DAB Pumps, Dab Submersible Pump

Overview of Dab 100 HP Submersible Motor TR8-75 kW-400 V-T

Dab 100 HP submersible motor TR8-75 kW-400 V-T is designed for heavy-duty applications requiring high performance and durability. It is ideal for use in environments where water and dust resistance are critical, thanks to its IP58 protection rating. The motor’s high efficiency and reliable startup make it suitable for continuous operation in demanding settings like underwater, mining, or large manufacturing plants. Its robust construction and high maximum operating depth ensure it performs well under extreme conditions, providing long-lasting service and minimal downtime. Whether used in horizontal setups or demanding environments, this motor offers a perfect balance of power, reliability, and protection.

Dab 100 HP Submersible Motor TR8-75 kW-400 V-T Specifications

Dab 100 HP submersible motor TR8-75 kW-400 V-T offers a robust 75 kW (100 HP) power output, suitable for demanding applications. It operates at a speed of 3000 rpm and draws a current of 145 amperes. The starting current ratio is 5.8, ensuring reliable startup performance. The motor’s power consumption during operation (P1) is approximately 86,207 watts. It features a NEMA 8-inch flanging for easy mounting and connection. The protection class is IP58, providing excellent resistance against dust and water ingress, with an option for IP68 upon request for even higher protection. Cooling is managed with a flow speed of 0.5 meters per second, maintaining optimal temperature during operation. This Dab submersible motor can tolerate power supply fluctuations of +6% to -10%, ensuring stable performance in variable power conditions. It can be started up to 10 times per hour without issues. Designed for deep-sea or underground applications, it supports a maximum operating depth of 300 meters and can withstand pressures up to 60 bar. The motor is suitable for horizontal operation within the power range of 30 HP to 125 HP, making it versatile for various industrial tasks.

Specification	Value
Power (kW)	75
Power (HP)	100
Current (A)	145
Starting Current Ratio	5.8
P1 (W)	86207
Speed (rpm)	3000
Flanging	NEMA 8″
Protection Class	IP58 (IP68 on request)
Cooling Flow Speed (m/s)	0.5
Power Supply Tolerance	+6%/-10%
Max Starts	10/h
Max Operating Depth (m)	300
Max Operating Temperature (bar)	60
Horizontal Operation	30 HP – 125 HP

Dab 100 HP Submersible Motor TR8-75 kW-400 V-T Applications

Underwater pumping systems
Mining equipment
Industrial manufacturing machinery
Deep-sea exploration devices

Dab 100 HP Submersible Motor TR8-75 kW-400 V-T Benefits

High power output for demanding tasks
Excellent water and dust resistance
Reliable startup with low maintenance
Suitable for deep-sea and harsh environments

Dab 100 HP Submersible Motor TR8-75 kW-400 V-T Price List

No.	Name	Price
1	Dab 100 HP Submersible Motor TR8-75 kW-400 V-T Price	Contact us

Brand	Dab
Power (kW)	75
Power (HP)	100
Speed (RPM)	3000
Degree of Protection	IP58
