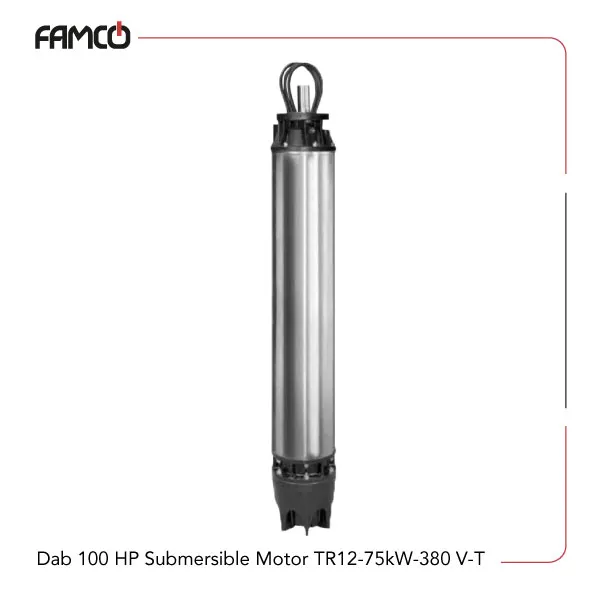

Dab 100 HP Submersible Motor TR12-75 kW-380 V-T Specifications
Dab 100 HP submersible motor TR12-75 kW-380 V-T delivers 75 kW (100 HP) of power, making it well suited for demanding industrial applications. It operates at 1500 rpm with a current draw of 147 A and features a starting current ratio of 6.5, ensuring reliable and consistent startup performance. The motor’s operating power consumption is approximately 85,227 W. It is equipped with a 12-inch flanged connection for secure and stable mounting. This Dab submersible motor is rated IP58 for protection against dust and water ingress, with an optional upgrade to IP68 when required. A cooling flow velocity of 0.5 m/s ensures effective thermal management during continuous operation. The power supply tolerance of +6% / −10% provides resilience against voltage fluctuations. The motor supports up to five starts per hour and is engineered to operate at depths of up to 300 m, withstanding pressures up to 60 bar.
| Specification | Value |
| Power (kW) | 75 |
| Power (HP) | 100 |
| Current (A) | 147 |
| Starting Current Ratio | 6.5 |
| P1 (W) | 85227 |
| Speed (rpm) | 1500 |
| Flanging | 12″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6% / -10% |
| Max. starts | 5/h |
| Max operating depth | 300 m |
| Horizontal operation | 180 HP – 260 HP |
Dab 100 HP Submersible Motor TR12-75 kW-380 V-T Applications
- Deep-sea water pumping systems
- Oil and gas extraction equipment
- Industrial machinery requiring high power
- Underwater exploration devices
Dab 100 HP Submersible Motor TR12-75 kW-380 V-T Benefits
- High power output for demanding tasks
- Excellent protection against dust and water
- Reliable operation at great depths
- Flexible installation with versatile power range
Dab 100 HP Submersible Motor TR12-75 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 100 HP Submersible Motor TR12-75 kW-380 V-T Price | Contact us |
