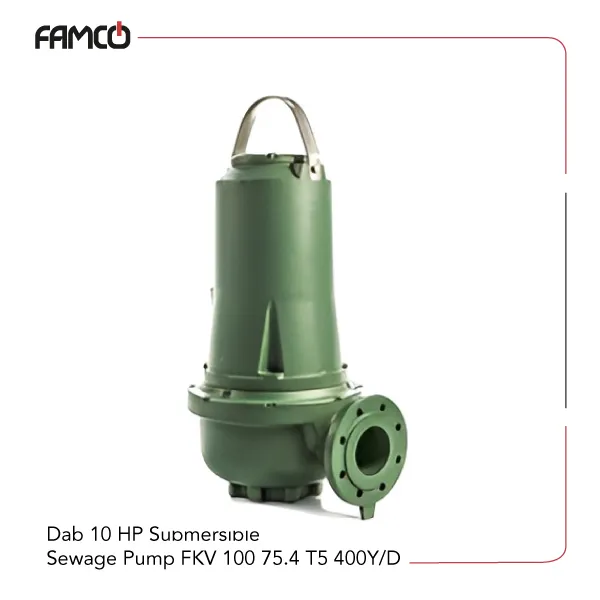

Dab 10 HP Submersible Sewage Pump FKV 100 75.4 T5 400Y/D Specifications
This pump features a vortex impeller made of durable cast iron, designed to handle solids between 65 and 100 mm efficiently. It operates within a pH range of 6.5 to 12, making it suitable for various liquids. The fluid temperature can vary from 0°C up to 40°C, allowing use in different environments. It can be installed at depths up to 20 meters underwater, ideal for deep water applications. The Dab submersible pump‘s mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, ensuring durability and leak prevention. It can deliver a maximum head of 19 meters and flow rate of 2400 liters per minute, making it powerful for large-scale operations. Powered by a 7.5 kW (10 HP) motor operating at 400 V three-phase voltage, this Dab sewage pump weighs 220 kg, indicating a robust build suitable for demanding tasks.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 19 m |
| Max flow rate | 2400 l/min |
| Three-phase voltage | 400 V |
| Power | 7.5 kW |
| Power (HP) | 10 HP |
| Weight | 220 kg |
Dab 10 HP Submersible Sewage Pump FKV 100 75.4 T5 400Y/D Performance Data
| m3 /h | 0 | 14.4 | 28.8 | 43.2 | 57.6 | 72 | 86.4 | 100.8 | 115.2 | 129.6 |
| l/min | 0 | 240 | 480 | 720 | 960 | 1200 | 1440 | 1680 | 1920 | 2160 |
| Head (m) | 19 | 18.8 | 18.3 | 17.5 | 16.5 | 15.2 | 13.9 | 12.4 | 10.8 | 9.2 |
Dab 10 HP Submersible Sewage Pump FKV 100 75.4 T5 400Y/D Applications
- Wastewater treatment plants
- Industrial drainage systems
- Deep well pumping
- Chemical processing
Dab 10 HP Submersible Sewage Pump FKV 100 75.4 T5 400Y/D Benefits
- Handles solids up to 100 mm efficiently
- Durable cast iron construction
- High flow rate for large volumes
- Reliable operation at various pH and temperature levels
Dab 10 HP Submersible Sewage Pump FKV 100 75.4 T5 400Y/D Price List
| No. | Name | Price |
| 1 | Dab 10 HP Submersible Sewage Pump FKV 100 75.4 T5 400Y/D Price | Contact us |
