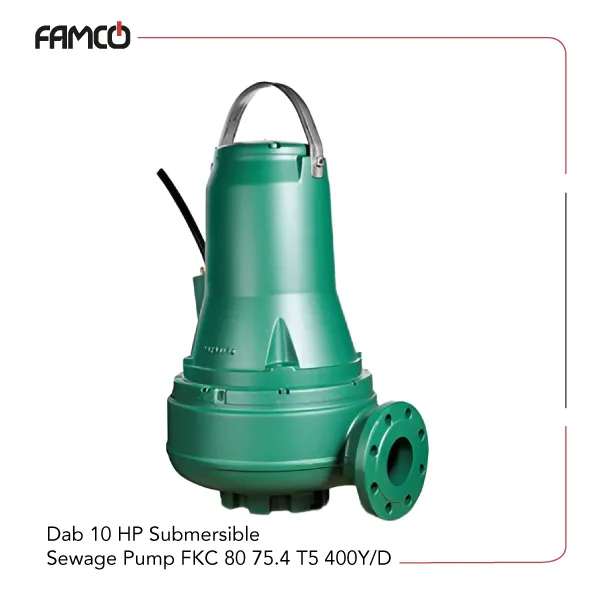

Dab 10 HP Submersible Sewage Pump FKC 80 75.4 T5 400Y/D Specifications
This pump features a single channel impeller made of durable cast iron, designed for efficient fluid movement. It handles solids up to 100 mm in size, making it suitable for various applications involving semi-solid or slurry materials. The Dab submersible pump operates within a pH range of 6.5 to 12, allowing it to work with different types of liquids without corrosion issues. It can operate in fluid temperatures from 0°C up to 40°C, making it versatile for different environments. The maximum installation depth is 20 meters, which is ideal for submersible applications. The mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, so this Dab sewage pump operates with optimal results. It can deliver a maximum head of 24.6 meters and a flow rate of up to 3360 liters per minute, providing high efficiency for demanding tasks. Powered by a 7.5 kW (10 HP) motor operating at 400 V three-phase voltage, it is suitable for industrial and large-scale operations. The pump weighs 231 kg, indicating a robust build for heavy-duty use.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 24.6 m |
| Max flow rate | 3360 l/min |
| Three-phase voltage | 400 V |
| Power | 7.5 kW |
| Power (HP) | 10 HP |
| Weight | 231 kg |

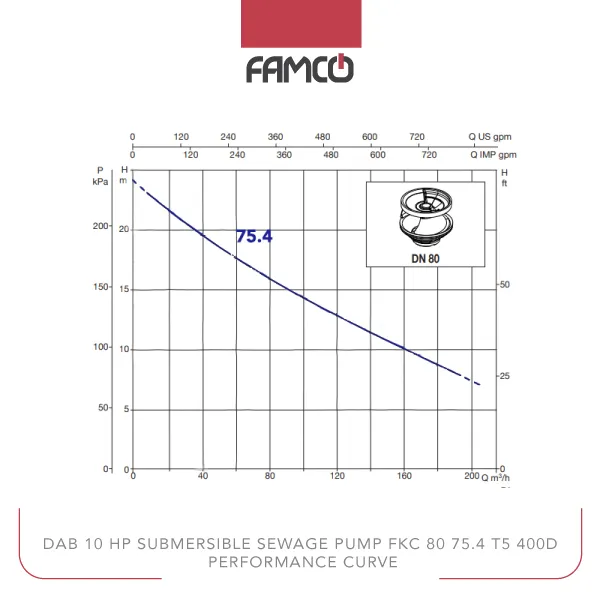

Dab 10 HP Submersible Sewage Pump FKC 80 75.4 T5 400Y/D Performance Data
| m3 /h | 0 | 14 | 29 | 43 | 58 | 72 | 86 | 101 | 115 | 130 | 144 | 158 | 173 | 187 | 202 |
| l/min | 0 | 240 | 480 | 720 | 960 | 1200 | 1440 | 1680 | 1920 | 2160 | 2400 | 2640 | 2880 | 3120 | 3360 |
| Head (m) | 24.5 | 22.8 | 21.2 | 19.7 | 18.3 | 17.1 | 15.8 | 14.7 | 13.6 | 12.6 | 11.6 | 10.6 | 9.6 | 8.7 | 7.7 |
Dab 10 HP Submersible Sewage Pump FKC 80 75.4 T5 400Y/D Applications
- Sewage and wastewater transfer
- Industrial slurry pumping
- Drainage in construction sites
- Municipal water management
Dab 10 HP Submersible Sewage Pump FKC 80 75.4 T5 400Y/D Benefits
- Handles solids up to 100 mm for versatile use
- Durable cast iron impeller for long-lasting performance
- High flow rate and head for demanding tasks
- Reliable mechanical seals prevent leaks and extend lifespan
Dab 10 HP Submersible Sewage Pump FKC 80 75.4 T5 400Y/D Price List
| No. | Name | Price |
| 1 | Dab 10 HP Submersible Sewage Pump FKC 80 75.4 T5 400Y/D Price | Contact us |
