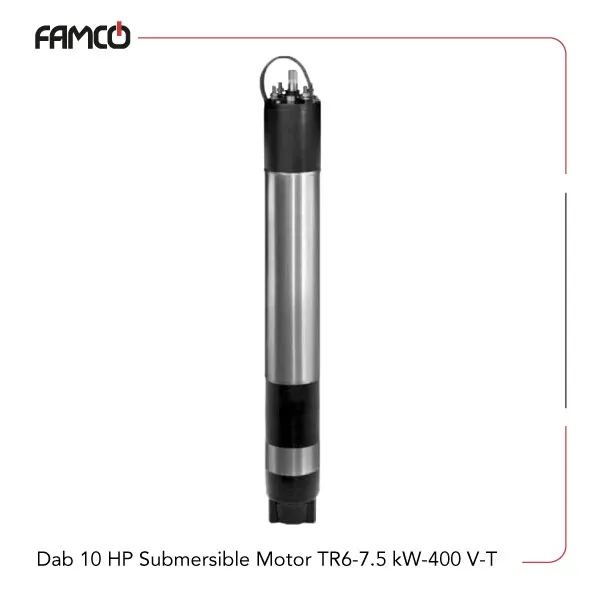

Dab 10 HP Submersible Motor TR6-7.5 kW-400 V-T Specifications
Dab 10 HP submersible motor TR6-7.5 kW-400 V-T is equipped with a 7.5 kW motor, equivalent to 10 HP, operating at 3000 rpm with a current draw of 18 amperes. The starting current ratio is 3.7. It incorporates a NEMA 6″ flanging configuration, providing compatibility with standard mounting arrangements. The protection class is IP68, offering a high level of resistance to dust and water, making the unit appropriate for demanding environments. Cooling is supported through a flow speed of 0.5 meters per second to manage thermal conditions during operation. The motor accommodates power supply variations from +6% to -10%. This Dab submersible motor supports up to 15 starts per hour, making it suitable for installations that require frequent cycling. The unit is rated for operation at depths up to 300 meters and can withstand pressures up to 60 bar, aligning with requirements for underwater applications.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Current (A) | 18 |
| Starting Current Ratio | 3.7 |
| P1 (W) | 9740 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 6″ |
| Protection class | IP68 |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6% / -10% |
| Max. starts | 15/h |
| Max operating depth | 300 m |
| Max operating temperature | 60 bar |
| Horizontal operation | 7.5 HP – 50 HP |
Dab 10 HP Submersible Motor TR6-7.5 kW-400 V-T Applications
- Underwater exploration and research
- Deep-sea pumping systems
- Industrial water management
- Submersible equipment in harsh environments
Dab 10 HP Submersible Motor TR6-7.5 kW-400 V-T Benefits
- High durability with IP68 protection
- Reliable cooling system for continuous operation
- Versatile power range for various tasks
- Capable of operating at great depths and pressures
Dab 10 HP Submersible Motor TR6-7.5 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 10 HP Submersible Motor TR6-7.5 kW-400 V-T Price | Contact us |
