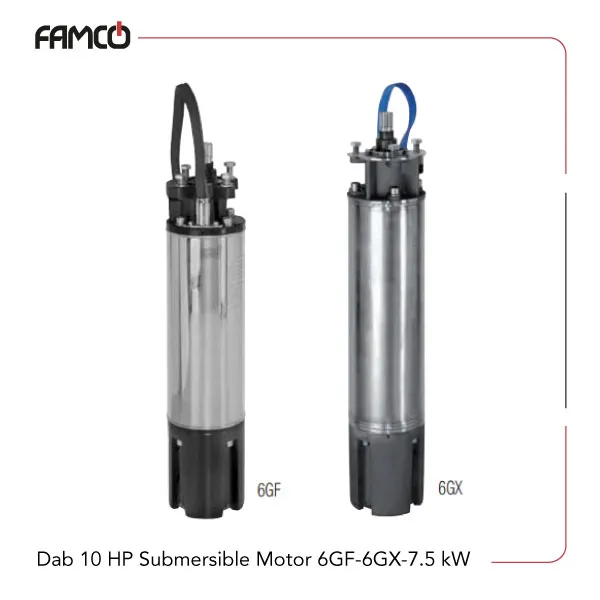

Dab 10 HP Submersible Motor 6GF/6GX-7.5 kW Specifications
This motor has a power output of 7.5 kW (10 HP), suitable for a wide range of industrial applications. It operates at a speed of 3000 rpm and draws a current of 31 amperes. The starting current ratio is 4.1, which defines its startup demand. The P1 power consumption is 9,550 watts, supporting efficient operation. The motor includes a NEMA 6-inch flange for secure mounting and connection. The insulation class is F, which provides strong thermal resistance, while the IP68 protection class offers full protection against dust and water ingress. Cooling requires a minimum flow speed of 0.3 meters per second at an ambient temperature of 35°C to maintain proper temperature control. The motor accepts power supply variations of +6% to −10%, supporting stable operation under fluctuating electrical conditions. It allows up to 25 starts per hour and suits intermittent duty cycles. The design supports underwater operation at depths of up to 300 meters. For horizontal installation, the supported power range extends from 5.5 HP to 50 HP, offering flexibility across different system configurations.
| Model | 230V | 400V | 415V |
| Current (A) | 31 | 18 | 18.3 |
| Starting Current Ratio | 4.1 | 4.1 | 4.6 |
| Power (HP) | 10 | ||
| Power (kW) | 7.5 | ||
| P1 (W) | 9550 | ||
| Speed (rpm) | 3000 | ||
| Flanging | NEMA 6″ | ||
| Insulation Class | F | ||
| Protection Class | IP68 | ||
| Cooling Flow Speed | min. 0,3 m/s 35 °C | ||
| Power Supply Tolerance | +6%/-10% | ||
| Max Starts | 25/h | ||
| Max Operating Depth | 300 m | ||
| Horizontal Operation | 5,5 HP – 50 HP | ||
Dab 10 HP Submersible Motor 6GF/6GX-7.5 kW Applications
- Underwater pumping systems
- Deep-sea exploration equipment
- Industrial water treatment plants
- Submersible machinery
Dab 10 HP Submersible Motor 6GF/6GX-7.5 kW Benefits
- High durability with IP68 protection
- Reliable performance at 300 meters depth
- Versatile power range for various uses
- Efficient cooling system for long-lasting operation
Dab 10 HP Submersible Motor 6GF/6GX-7.5 kW Price List
| No. | Name | Price |
| 1 | Dab 10 HP Submersible Motor 6GF/6GX-7.5 kW Price | Contact us |
