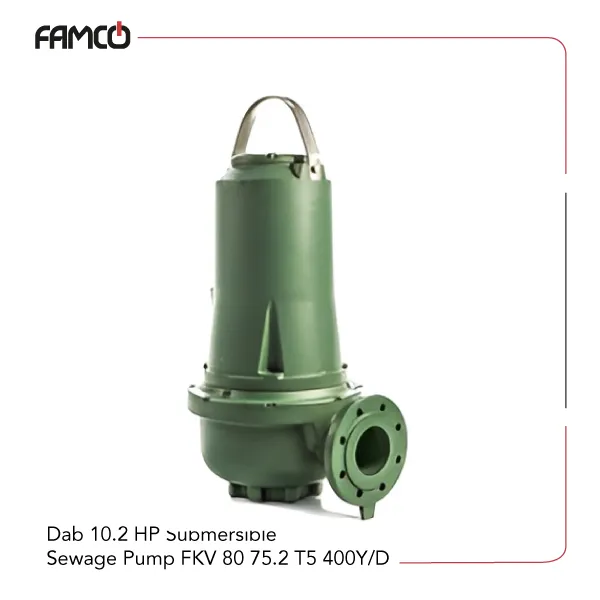

Dab 10.2 HP Submersible Sewage Pump FKV 80 75.2 T5 400Y/D Specifications
This pump features a vortex impeller made of durable cast iron, designed for efficient handling of solids ranging from 65 to 100 mm. It operates within a fluid pH range of 6.5 to 12, making it suitable for various liquids. The Dab submersible pump offered to you here can handle fluid temperatures from 0°C up to 40°C, ensuring versatility in different environments. It can be installed at depths up to 20 meters, ideal for deep well or sump applications. The mechanical seals inside this Dab sewage pump are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, providing reliable sealing and long service life. The maximum delivery head is 32.1 meters, and it can achieve a flow rate of up to 1560 liters per minute. Powered by a 400V three-phase supply, it delivers 7.5 kW (10.2 HP) of power, and weighs approximately 152 kg, indicating a robust and sturdy construction suitable for demanding tasks.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 32.1 m |
| Max flow rate | 1560 l/min |
| Three-phase voltage | 400 V |
| Power | 7.5 kW |
| Power (HP) | 10.2 HP |
| Weight | 152 kg |

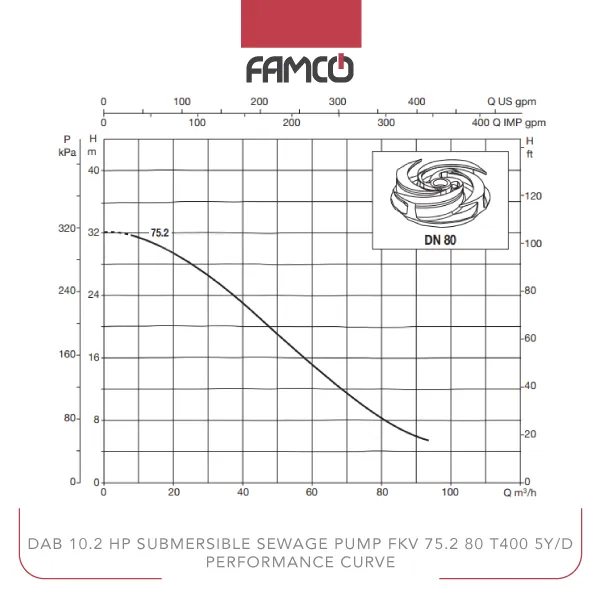

Dab 10.2 HP Submersible Sewage Pump FKV 80 75.2 T5 400Y/D Performance Data
| m3 /h | 0 | 7.2 | 14.4 | 21.6 | 28.8 | 36 | 43.2 | 50.4 | 57.6 | 64.8 | 72 | 79.2 | 86.4 | 93.6 |
| l/min | 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 | 1080 | 1200 | 1320 | 1440 | 1560 |
| Head (m) | 32.1 | 31.8 | 30.8 | 29.1 | 27 | 24.5 | 21.8 | 18.9 | 16 | 13.2 | 10.6 | 8.4 | 6.6 | 5.4 |
Dab 10.2 HP Submersible Sewage Pump FKV 80 75.2 T5 400Y/D Applications
- Wastewater and sewage pumping
- Industrial fluid transfer
- Agricultural irrigation systems
- Deep well water extraction
Dab 10.2 HP Submersible Sewage Pump FKV 80 75.2 T5 400Y/D Benefits
- Handles solids up to 100 mm, reducing clogging issues
- Durable cast iron construction for long-lasting use
- High flow rate and head for efficient operation
- Suitable for various liquids with different pH levels
Dab 10.2 HP Submersible Sewage Pump FKV 80 75.2 T5 400Y/D Price List
| No. | Name | Price |
| 1 | Dab 10.2 HP Submersible Sewage Pump FKV 80 75.2 T5 400Y/D Price | Contact us |
