Dab 1 HP Submersible Pump MICRA 100

0.5 kW (1 HP)

Single- and three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: DAB Pumps, Dab Submersible Pump

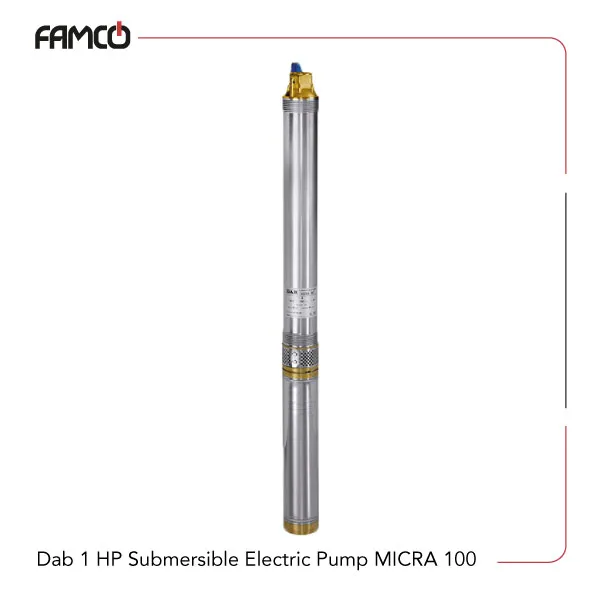

Overview of Dab 1 HP Submersible Pump MICRA 100

This submersible motor offers a compact yet capable solution for light pumping tasks. It delivers 0.75 HP of power, which corresponds to 1 kW, providing enough energy to handle small-scale water movement efficiently. The motor can reach a maximum flow rate of 2.7 m³/h (45 l/min), allowing it to move a steady volume of water when needed. It is designed to operate against a maximum head of 90 meters, making it suitable for applications that require lifting water over significant vertical distances.

Dab 1 HP Submersible Pump MICRA 100 Specifications

Dab submersible pump MICRA 100 offers a power of 0.75 HP (1 kW), making it suitable for various water transfer tasks. It can handle a maximum flow rate of 2.7 cubic meters per hour, which is equivalent to 45 liters per minute. The maximum head it can achieve is 90 meters, providing strong water pressure for different applications. This Dab submersible pump weighs 13.6 kilograms, making it portable yet sturdy. It operates efficiently within a liquid temperature range from 0°C to 35°C, ensuring versatility in different environments. The device can tolerate up to 40 grams of sand per cubic meter of water, suitable for slightly dirty water sources. The discharge port has a diameter of 1 inch GAS, compatible with standard fittings. Its power supply tolerance is +6% to -10%, allowing some fluctuation without affecting performance. The pump can start up to 20 times per hour, making it reliable for continuous or frequent use.

Specification	Value
Power (HP)	0.75
Power (kW)	1
Maximum flow rate (m3/h)	2.7
Maximum flow rate (l/min)	45
Maximum head (m)	90
Weight (kg)	13.6
Liquid temperature range	from 0 °C to +35 °C
Maximum permitted amount of sand	40 g/m3
Discharge port diameter	1″ GAS
Power supply tolerance	+6 % / -10 %
Max. starts	20/h

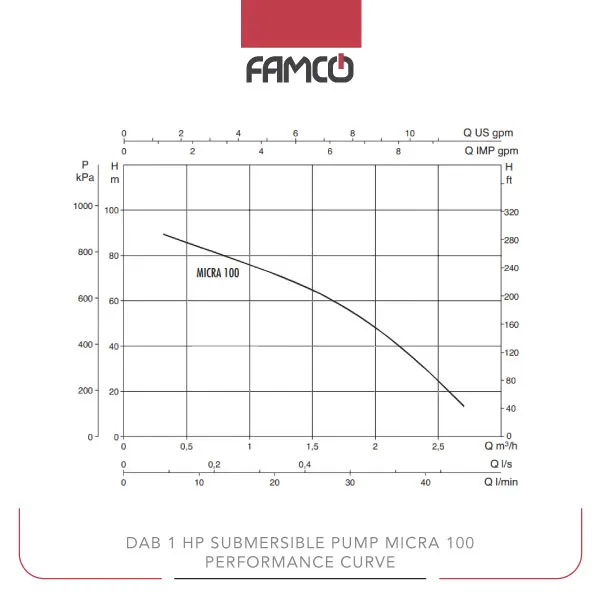

Dab 1 HP Submersible Pump MICRA 100 Performance Data

Q (m3/h)	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
Q (l/min)	5	10	15	20	25	30	35	40	45
H (m)	90	84	78	72	65	56	44	30	14

Dab 1 HP Submersible Pump MICRA 100 Applications

Irrigation systems for farms and gardens
Water transfer in residential or industrial settings
Drainage and flood control projects
Water supply for small communities or construction sites

Dab 1 HP Submersible Pump MICRA 100 Benefits

High efficiency with a maximum head of 90 meters
Lightweight and portable for easy handling
Suitable for slightly dirty water with sand content
Reliable with up to 20 starts per hour

Dab 1 HP Submersible Pump MICRA 100 Price List

No.	Name	Price
1	Dab 1 HP Submersible Pump MICRA 100 Price	Contact us

Brand	Dab
Maximum Flow Rate (L/min)	45
Maximum Flow Rate (m3/h)	2.7
Maximum Delivery Head (m)	90
Power (HP)	1
Power (kW)	0.75
Maximum Liquid Temperature (°C)	35
Weight (kg)	13.6
