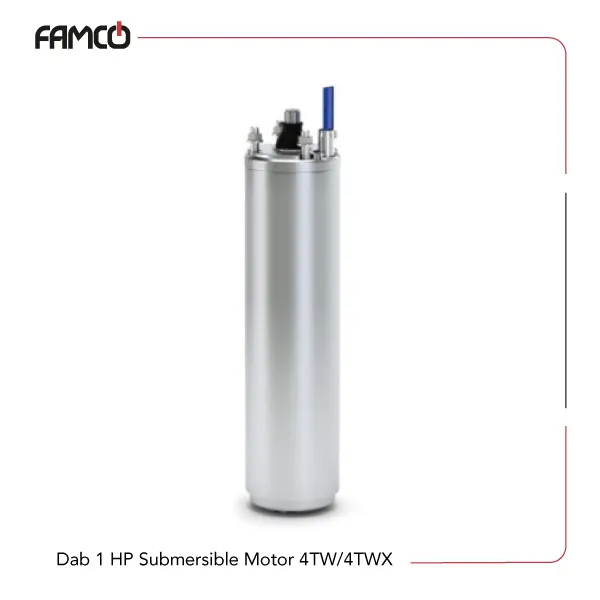

Dab 1 HP Submersible Motor 4TW/4TWX

0.75 kW (1 HP)

Single-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Dab 1 HP Submersible Motor 4TW/4TWX

The 1 HP 4TW/4TWX Dab submersible motor can be coupled with powerful pumps to deliver siginificant heights and flow rates, considering the motor unit is made of lasting components. With high protection and insulation ratings, it performs well underwater and in dusty conditions. Its efficient cooling system ensures reliable operation over long periods. The motor is suitable for applications requiring deep water operation, frequent starts, and stable power supply. Compact and lightweight, it is perfect for industrial, marine, and specialized machinery where durability and performance are essential.

Related Products

Dab 1 HP Submersible Motor 4TW/4TWX Specifications

This product features an insulation class of F, ensuring good thermal endurance. It has a protection class of IP68, making it highly resistant to dust and water ingress, suitable for harsh environments. The cooling system operates with a minimum flow speed of 0.3 meters per second at 35 degrees Celsius, which helps maintain optimal operating temperatures. The power supply can tolerate variations of +6% to -10%, providing flexibility in different electrical setups. It can start up to 20 times per hour without issues, and it is designed to operate at depths up to 300 meters underwater, making it ideal for submersible applications. The Dab submersible product (motor-equipped only) has two poles and runs at a frequency of 50 Hz, with a speed of 2820 revolutions per minute. It weighs approximately 9.6 kg for model 4TW and 10.1 kg for model 4WX. The device operates on a single-phase power supply of 230 volts and delivers a power output of 0.75 kilowatts, equivalent to 1 horsepower, making it suitable for various industrial and commercial uses.

Dab 1 HP Submersible Motor 4TW/4TWX



Specification Value
Insulation class F
Protection class IP68
Cooling flow speed min. 0,3 m/s at 35 °C
Power supply tolerance +6% / -10%
Max. starts 20 per hour
Max operating depth 300 meters
Number of poles 2
Frequency 50 Hz
Weight (kg) 4TW: 9.6, 4WX: 10.1
Phase single-phase
Speed 2820 rpm
Power 0.75 kW
Power (HP) 1 HP
Voltage 230 V



Dab 1 HP Submersible Motor 4TW/4TWX Applications

  • Submersible pumps for water extraction
  • Marine equipment and underwater machinery
  • Industrial automation systems
  • Heavy-duty machinery requiring reliable power



Dab 1 HP Submersible Motor 4TW/4TWX Benefits

  • High resistance to dust and water ingress
  • Suitable for deep water applications up to 300 meters
  • Stable operation with tolerance for power fluctuations
  • Compact design with lightweight construction
