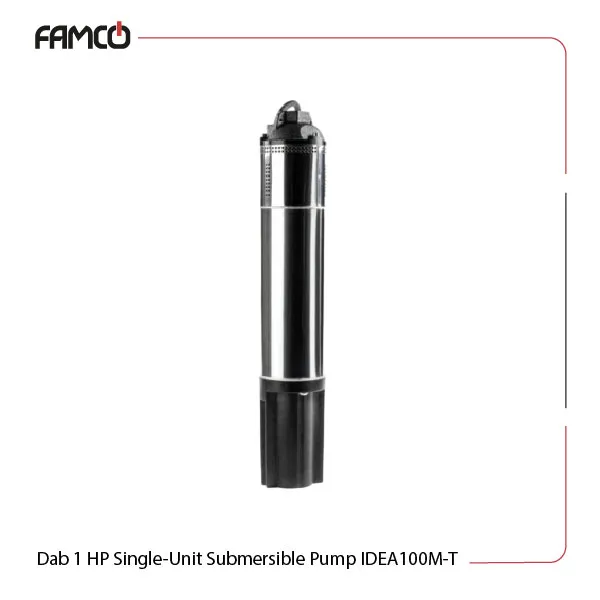

Dab 1 HP Single-Unit Submersible Pump IDEA100M-T

Dab 1HP Submersible Pump IDEA100

0.75 kW (1HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tag: DAB Pumps

Overview of Dab 1HP Submersible Pump IDEA100

This versatile pump feasibly transfers clean liquids powered by a 1 HP output. It operates efficiently passing liquids at a temperature range of 0 °C to +35 °C with flow rates up to 2.4 m3/h, making it suitable for both residential and industrial applications. The product’s sturdy design, using a single brass impeller and AISI 304 motor, enables handling depths of up to 20 meters with a reliable performance in demanding environments. This pump has a high IP68 protection class; built to last. This model is provided in both single- or three-phase versions.

Dab 1HP Submersible Pump IDEA100M (single-phase)
Dab 1HP Submersible Pump IDEA100T (three-phase)

Dab 1HP Submersible Pump IDEA100 Specifications

Dab 1HP submersible pump IDEA100 is designed for efficient liquid transfer within a temperature range of 0 °C to +35 °C. This Dab submersible pump handles clean liquids that are free from solids and abrasives for a smooth operation. The maximum immersion depth is 20 meters, which is suitable for various applications. The overall power output of 0.75 kW (1 HP) of this pump delivers remarkable head hights. This solid unit is protected by an IP 68 rating to reach maximum durability in wet conditions. The sturdy features of this product such as an insulation class of F provide reliable performance all the way through operations. The standard voltage options include single-phase at 230 V/ 50Hz and three-phase at 400 V/ 50 Hz. The impeller is made of brass, while the mechanical seal consists of graphite and alumina. The shaft and motor are constructed from high-quality stainless steel. The total weight of the product is 12 kg.

Dab 1 HP Single-Unit Submersible Pump IDEA100M-T

Specification	Value
Liquid temperature range	from 0 °C to +35 °C
Max. immersion depth	20 m
Power (kW)	0.75
Power (HP)	1
Protection class	IP 68
Insulation class	F
Standard voltage	single-phase	230 V / 50 Hz
	three-phase	400 V / 50 Hz

Dab 1HP Submersible Pump IDEA100 Materials

Impeller: single, Brass PCuZn40Pb2 UNI 5705
Mechanical seal: GRAPHITE/ALUMINA
Shaft with motor: stainless steel AISI 431 X17CrNi16 2 UNI 10088-3
Motor: stainless steel AISI 304L X2CrNi19 11 UNI 10088-3

Dab 1HP Submersible Pump IDEA100 Dimensions and Weight

Dimensions (mm)		Weight (kg)
Ø	H	12
93	512	12

Dab 1HP Submersible Pump IDEA100 Technical Data

M3/h	0.4	0.6	0.9	1.2	1.5	1.8	2.1	2.4
l/min	7	10	15	20	25	30	35	40
H (m)	52	48.3	41.4	34.6	28	21.2	14.4	7.3

Dab 1HP Submersible Pump IDEA100 Performance Curve

Dab 1HP Submersible Pump IDEA100 Applications

Water transfer in residential settings
Irrigation systems for agriculture
Industrial liquid handling
Aquarium and pond maintenance

Dab 1HP Submersible Pump IDEA100 Benefits

Efficient operation within a wide temperature range
Durable construction for long-lasting use
High protection class for wet environments
Versatile applications across different sectors

Dab 1HP Submersible Pump IDEA100 Price List

No.	Name	Price
1	Dab 1HP Submersible Pump IDEA100 Price	Contact us

Brand	Dab
Maximum Liquid Temperature (°C)	35
Maximum immersion depth (m)	20
Power (kW)	0.75
Power (HP)	1
Degree of Protection	IP68
Insulation Class	F
Voltage (V)	230, 400
Impeller Material	Brass
Mechanical Seal	Graphite/Alumina
Frequency (Hz)	50
Applications	Aquarium water circulation, Irrigation, Water Transfer and Supply
