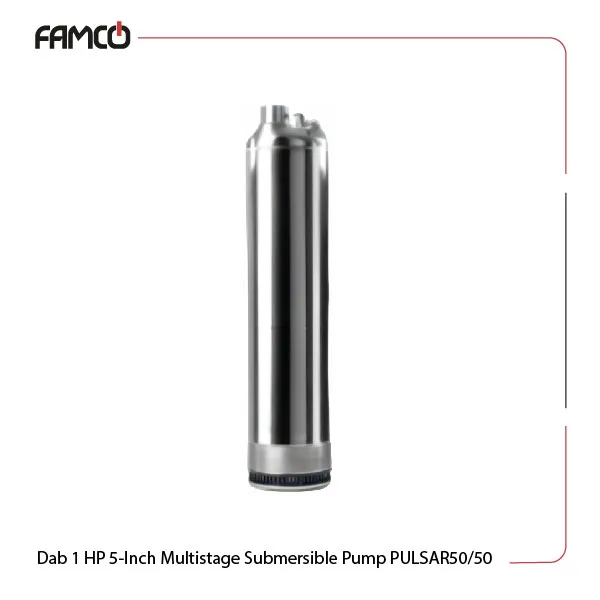

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR50/50 Specifications
This product features a voltage range of single-phase 220/240 V and three-phase 400 V, making it versatile for various applications. This Dab multistage submersible pump operates at a frequency of 50 Hz and has a sturdy protection class of IP68 to increase durability in challenging environments. The insulation class is rated F, which adds to its reliability. An optional automatic operation with a float switch is available for the single-phase version to enhance convenience. The impeller is made from technopolymer to reach utmost efficiency in the performanve of these submersible pumps. The seal lubrication fluid used is ESSO MARCOL 172 OIL, providing optimal protection. The mechanical seals are complete, with the upper seal made of NBR/Ceramic/Carbon and the lower seal made of NBR/Silicon/Carbon. Its impressive power and sturdy construction serve well for both residential and industrial use.
| Specification | Value | |
| Voltage (V) | single-phase | 220/240 V |
| three-phase | 400 V | |
| Frequency (Hz) | 50 | |
| Protection class | IP68 | |
| Insulation class | F | |
| Power (kW) | 1 | |
| Power (HP) | 1.36 | |
| H (m) | 24.5-72 | |
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR50/50 Materials
- Impeller: Technopolymer
- Seal lubrication: Fluid ESSO MARCOL 172 oil
- Complete upper mechanical seal: NBR/Ceramic/Carbon
- Complete lower mechanical seal: NBR/Silicon/Carbon

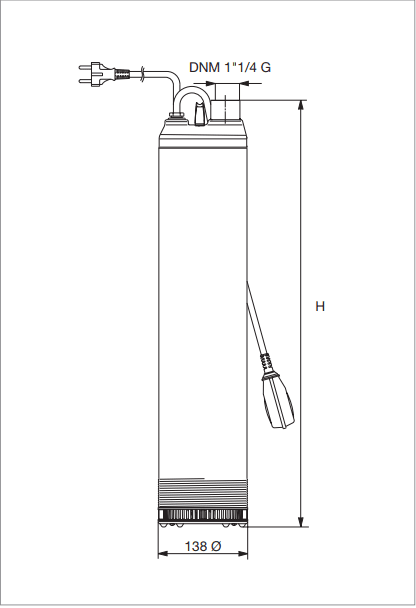

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR50/50 Dimensions and Weight
| Dimensions (mm) | Weight (kg) |
| H | 18.5 |
| 562 |
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR50/50 Technical Data
| M3/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 |
| l/min | 0 | 20 | 40 | 60 | 80 |
| H (m) | 72 | 65.5 | 58 | 43.6 | 24.5 |

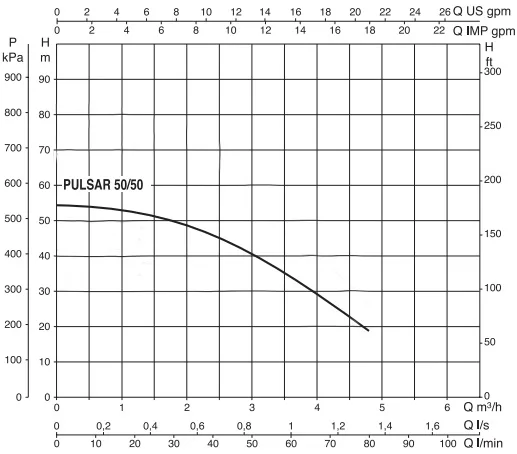

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR50/50 Performance Curve
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR50/50 Applications
- Residential water supply systems
- Irrigation and agricultural applications
- Industrial water management
- Drainage in construction sites
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR50/50 Benefits
- Durable construction with IP68 protection
- Versatile voltage options for different setups
- Efficient performance with technopolymer impeller
- User-friendly with optional automatic operation
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR50/50 Price List
| No. | Name | Price |
| 1 | Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR50/50 Price | Contact us |
