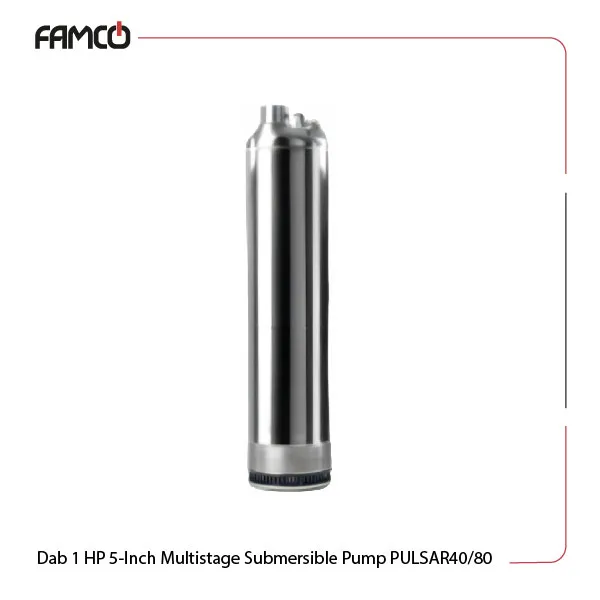

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80

0.75 kW (1 HP)

single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tag: DAB Pumps

Overview of Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80

This product is the final solution for liquid transfer applications. The product’s solid construction and advanced materials have turned this product to one of the go to choices for both residential and industrial use. This pump operates efficiently in a range of conditions contributing to versatility at different environments. Its ability to handle clean liquids without solids or abrasives is the key to a smooth operation and higher throughput . The combination of a powerful motor and durable components has made this pump a great choice for a reliable. This model is provided in both single- or three-phase versions.

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 (single-phase)

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 (three-phase)

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 Specifications

This product features a power output of 0.75 kW (1 HP) and operates efficiently within a height range of 13 to 51 meters. It can handle liquid temperatures from 0 °C to +40 °C, making it suitable for various applications. The pumped liquid in this Dab multistage submersible pump must be clean and free from solids, abrasives, and aggressive substances. The maximum immersion depth of this pump is 20 meters deep, designed for consistent performance. The motor is protected by an IP 68 class to increase durability in challenging environments. Additionally, the motor protection rating is F to increase the pump’s overall quality. The impeller, diffuser, and shaft are made from technopolymer which is a lightweight yet strong material. The seal lubrication fluid used is ESSO MARCOL 172 OIL, which contributes to the longevity of the motor.

Specification	Value
Power (kW)	0.75
Power (HP)	1
H (m)	13-51
Liquid temperature range	from 0 °C to +40 °C
Pumped liquid	clean, free of solids and abrasives, non-aggressive
Maximum immersion depth	20 meters
Motor protection class	IP 68
Motor protection rating	F
Voltage (V)	Single-phase	230 V / 50 Hz
	Three-phase	400 V / 50 Hz

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 Materials

Impeller: technopolymer
Diffuser: technopolymer
Shaft with motor: technopolymer
Seal lubrication fluid: ESSO MARCOL 172 OIL

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 Dimensions and Weight

Dimensions (mm)	Weight (kg)
H	18.5
630	18.5

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 Technical Data

M3/h	0	1.2	2.5	3.6	4.8	6	7.2
l/min	0	20	40	60	80	100	120
H (m)	64	61	56.8	50	41.5	30.5	16.2

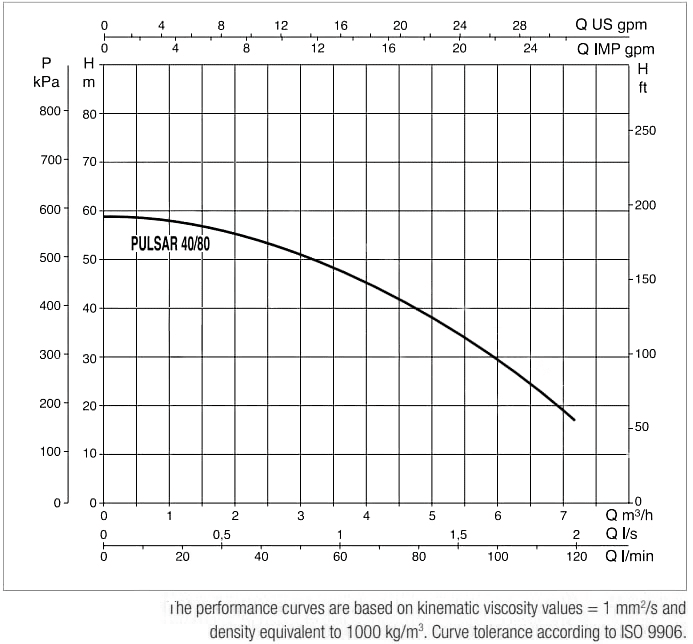

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 Performance Curve

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 Applications

Water transfer in residential settings
Irrigation systems for agriculture
Industrial liquid handling
Aquarium and pond maintenance

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 Benefits

Efficient power consumption with 0.75 kW output
Durable construction with technopolymer materials
High immersion depth capability for versatile use
Reliable motor protection for extended lifespan

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 Price List

No.	Name	Price
1	Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR40/80 Price	Contact us

Brand	Dab
Power (kW)	0.75
Power (HP)	1
Maximum Delivery Head (m)	51
Maximum Liquid Temperature (°C)	40
Maximum immersion depth (m)	20
Degree of Protection	IP68
Voltage (V)	230, 400
Impeller Material	Technopolymer
Frequency (Hz)	50
Applications	Aquarium water circulation, Irrigation, Water Transfer and Supply
