Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR30/80 Specifications
This product is a high-performance product designed specifically for efficient liquid transfer. The product’s unique construction and advanced features are suitable for submersible pumps of this type in both domestic and commercial settings. This product operates on a voltage of either single-phase 220/240 V or three-phase 400 V, with a frequency of 50 Hz. It offers a high protection class of IP68 for enhanced durability in challenging environments. The insulation class in this Dab multistage submersible pump is rated F, which adds to its reliability. The impeller and diffuser are made from technopolymer for added strength and resistance to environmental and logistical corrosion. The seal lubrication fluid used is ESSO MARCOL 172 OIL, while the mechanical seals consist of NBR/CERAMIC/CARBON for the upper part and NBR/SILICON/CARBON for the lower part.
| Specification | Value | |
| Voltage (V) | single-phase | 220/240 V |
| three-phase | 400 V | |
| Frequency (Hz) | 50 | |
| Protection class | IP68 | |
| Insulation class | F | |
| Liquid temperature range | from 0 °C to +40 °C | |
| Power (kW) | 0.75 | |
| Power (HP) | 1 | |
| Head (m) | 13-51 | |
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR30/80 Materials
- Impeller: Technopolymer
- Diffuser: Technopolymer
- Seal lubrication fluid: ESSO MARCOL 172 OIL
- Complete upper mechanical seal: NBR/CERAMIC/CARBON
- Complete lower mechanical seal: NBR/SILICON/CARBON

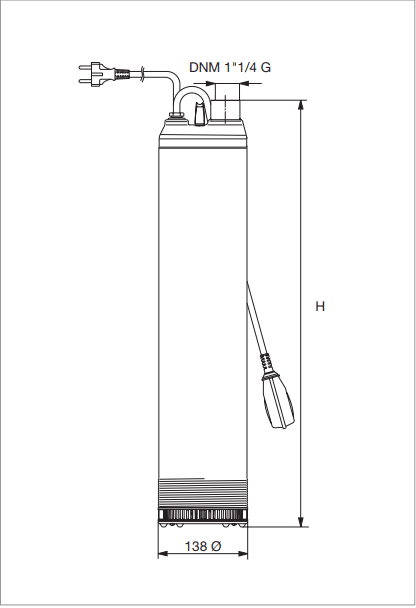

Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR30/80 Dimensions and Weight
| Dimensions (mm) | Weight (kg) |
| H | 17.5 |
| 562 |
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR30/80 Technical Data
| M3/h | 0 | 1.2 | 2.5 | 3.6 | 4.8 | 6 | 7.2 |
| l/min | 0 | 20 | 40 | 60 | 80 | 100 | 120 |
| H (m) | 51 | 48.2 | 44.8 | 39.2 | 32.4 | 23.5 | 13 |
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR30/80 Performance Curve
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR30/80 Applications
- Water supply systems in residential buildings
- Irrigation systems for agricultural use
- Drainage in construction sites
- Cooling systems in industrial applications
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR30/80 Benefits
- Durable construction with IP68 protection
- Efficient operation with low power consumption
- Versatile applications across different sectors
- Optional automatic operation for convenience
Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR30/80 Price List
| No. | Name | Price |
| 1 | Dab 1 HP 5-Inch Multistage Submersible Pump PULSAR30/80 Price | Contact us |
