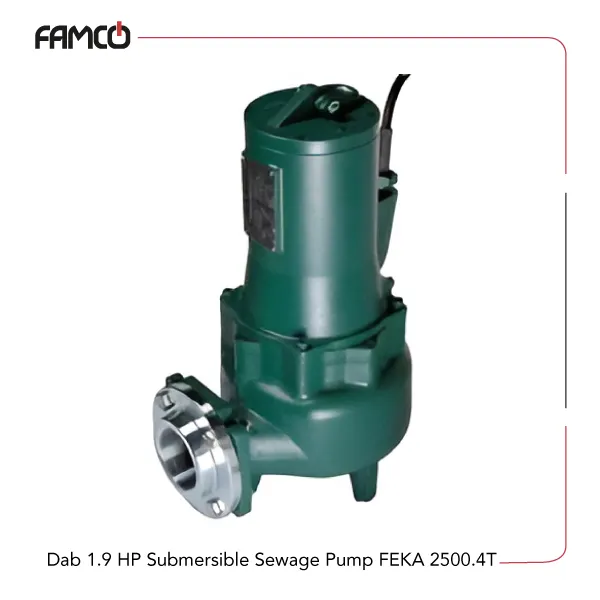

Dab 1.9 HP Submersible Sewage Pump FEKA 2500.4T Specifications
This product features a high level of protection with an IP 68 rating, making it suitable for harsh environments. It has an insulation class of F, ensuring safety and durability under various conditions. The pump allows a free solids passage of 62 mm, which is ideal for handling fluids with solid particles. It operates within a temperature range from 0°C to 40°C, making it versatile for different applications. The device runs on a three-phase power supply of 400 V and a frequency of 50 Hz. It can deliver a maximum head of 8 meters and a flow rate up to 800 liters per minute. The power consumption is 1.4 kW, equivalent to 1.9 HP, and it weighs 45 kg, making this Dab submersible pump relatively lightweight and easy to handle. Overall, this Dab sewage pump is designed for efficient fluid transfer, suitable for industrial, agricultural, or commercial use, especially where durability and solid handling are required.
| Specification | Value |
| Degree of Protection | IP 68 |
| Insulation Class | F |
| Free Solids Passage (mm) | 62 |
| Fluid Temperature Range | 0°C to +40°C |
| Three-phase Voltage | 400 V |
| Frequency (Hz) | 50 |
| Max. Delivery Head (m) | 8 |
| Max. Flow Rate (l/min) | 800 |
| Power (kW) | 1.4 |
| Power (HP) | 1.9 |
| Weight (kg) | 45 |
Dab 1.9 HP Submersible Sewage Pump FEKA 2500.4T Performance Curve
| m3 /h | 0 | 3 | 6 | 12 | 18 | 24 | 36 | 48 |
| l/min | 0 | 50 | 100 | 200 | 300 | 400 | 600 | 800 |
| Head (m) | 8 | 7.8 | 7.6 | 7.2 | 6.7 | 6.3 | 5.4 | 4.4 |
Dab 1.9 HP Submersible Sewage Pump FEKA 2500.4T Applications
- Industrial fluid transfer
- Agricultural irrigation systems
- Wastewater management
- Chemical processing
Dab 1.9 HP Submersible Sewage Pump FEKA 2500.4T Benefits
- High protection level with IP 68 rating for tough environments
- Handles solids up to 62 mm, suitable for complex fluids
- Efficient operation with a flow rate of 800 l/min
- Lightweight design for easy handling and installation
Dab 1.9 HP Submersible Sewage Pump FEKA 2500.4T Price List
| No. | Name | Price |
| 1 | Dab 1.9 HP Submersible Sewage Pump FEKA 2500.4T Price | Contact us |
