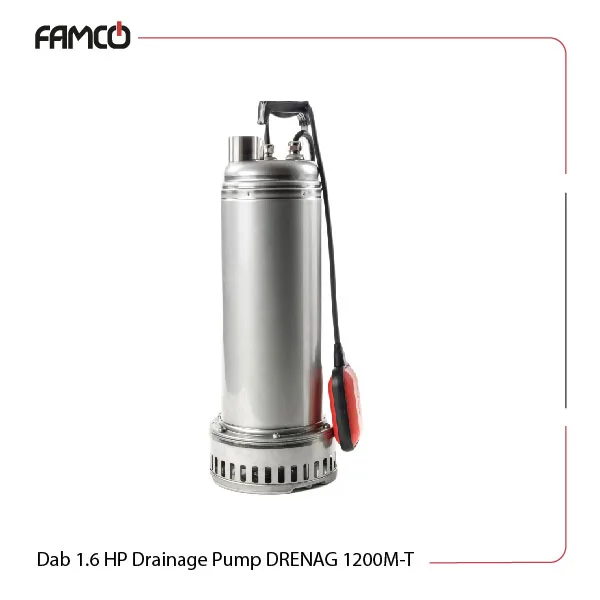

Dab 1.6 HP Drainage Pump DRENAG 1200M-T Specifications
This pump single-handedly handles various liquids, including rainwater, groundwater, and clean wastewater. This series of Dab drainage pumps passes solids up to 10 mm in size. The liquid temperature could be anuwhere in a range of 0 °C to +35 °C for domestic use and up to 50 °C for other applications. It also operates efficiently in ambient temperatures up to 40 °C and can be immersed up to 7 metres deep with seamless operation. The motor inside this product has an IP 68 protection class to reach enhanced durability in wet conditions. It features a consistent construction with AISI 304 stainless steel for the pump body and impeller, while the motor shaft is made from AISI 316 stainless steel.
This submersible pump can be installed in various orientations, either fixed or portable, and supports both single-phase and three-phase voltage options. The prouct’s power output of 1.2 kW (1.6 HP) and a head range of 3.3 to 17 metres has made it versatile for many applications.
| Specification | Value | |
| Pumped liquid | rain water, ground water, sandy water from construction sites and clean, non aggressive, waste water | |
| Free passage of solids | 10 mm | |
| Liquid temperature range | domestic use | 0 °C to +35 °C |
| other uses | 0 °C to +50 °C | |
| Maximum ambient temperature for operation with motor above water | +40 °C | |
| Maximum immersion depth | 7 metres | |
| Motor protection class | IP 68 | |
| Insulation class | F | |
| Number of poles | 2 | |
| Max starts/hour | 20 | |
| Power (kW) | 1.2 | |
| Power (HP) | 1.6 | |
| Voltage (V) | single-phase | 220-240 |
| three-phase | 400 | |
| Frequency (Hz) | 50 | |
| Head (m) | 3.3-17 | |
Dab 1.6 HP Drainage Pump DRENAG 1200M-T Materials
- Pump body: AISI 304 stainless steel X5CrNi 1810 – UNI 6900/71
- Impeller: AISI 304 stainless steel X5CrNi 1810 – UNI 6900/71
- Motor shaft: microcast stainless steel aisi 316 x5crnimo 1712 – uni 6900/71
- Handle: AISI 304 stainless steel x5crni 1810 – uni 6900/7 insulating rubber coated
- Mechanical seal on pump side: silicon carbide/silicon carbide
- Mechanical seal on motor side: carbon/alumina
Dab 1.6 HP Drainage Pump DRENAG 1200M-T Dimension and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Ø A | Ø C | D | H | H1 | |
| 215 | 175 | 71 | 413 | 385 | 18.5 |
Dab 1.6 HP Drainage Pump DRENAG 1200M-T Technical Data
| Q= m3 /h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Q=l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 |
| H (m) | 17 | 15.4 | 13.8 | 12.4 | 10.7 | 9 | 7.3 | 3.3 |

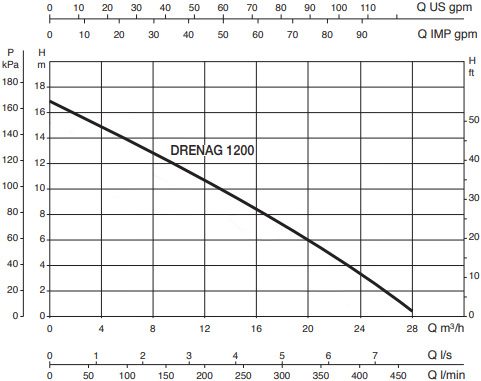

Dab 1.6 HP Drainage Pump DRENAG 1200M-T Performance Curve
Dab 1.6 HP Drainage Pump DRENAG 1200M-T Applications
- Draining rainwater from basements or yards
- Pumping groundwater for construction projects
- Handling clean wastewater in residential settings
- Irrigation systems for gardens and farms
Dab 1.6 HP Drainage Pump DRENAG 1200M-T Benefits
- Durable stainless steel construction for long-lasting use
- Versatile operation in various liquid types and temperatures
- Compact design allows for easy installation and portability
- High efficiency with a maximum head of 17 metres
Dab 1.6 HP Drainage Pump DRENAG 1200M-T Price List
| No. | Name | Price |
| 1 | Dab 1.6 HP Drainage Pump DRENAG 1200M-T Price | Contact us |
