Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80

1.2 kW (1.6 HP)

single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tag: DAB Pumps

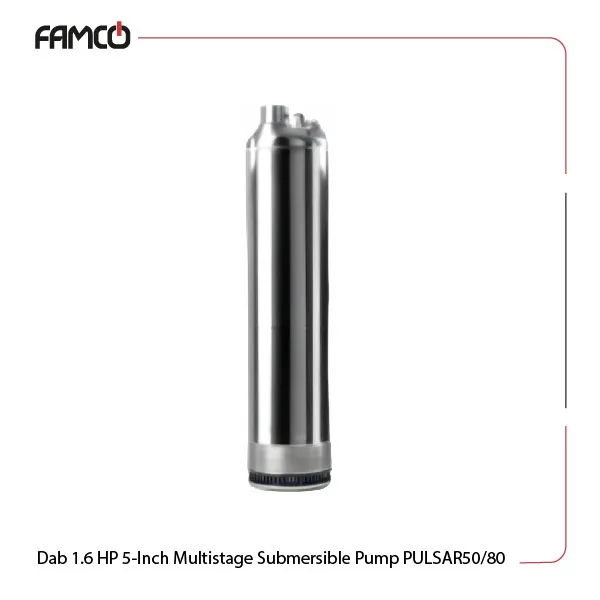

Overview of Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80

This 1.6 HP pump is built for top-tier performance with a maximum flow rate of 7.2 m3/h. The product’s strong power 1.2 kW output and versatile operational voltage range (220-240, 400V) are great for both home and industrial settings. The durable materials used in its construction, such as the technopolymer impeller, contribute to a lasting use, while the IP68 motor protection gives you confidence even in tough conditions. It is especially well-suited for handling clean, non-corrosive liquids and not just getting the job done, but doing it efficiently. This model is provided in both single- or three-phase versions.

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 (single-phase)

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 (three-phase)

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 Specifications

This product features a power output of 1.2 kW, equivalent to 1.6 HP which is needed for efficiency in various applications. This multistage Dab submersible pump operates effectively within a height range of 19.6 to 77 meters. The liquid temperature ranges from 0 °C to +40 °C depending on different environments. It is designed to pump clean liquids that are free from solids and abrasives. The maximum immersion depth in this sturdy pumping device is 20 meters for deeper installations. The product’s built-in motor is protected with an IP 68 rating to enhance durability and resistance to water. Additionally, the motor protection rating is F, which adds to its reliability. The impeller, diffuser, and shaft are all made from technopolymer to make it lightweight yet powerful. For optimal performance, the seal lubrication fluid used is ESSO MARCOL 172 OIL.

Specification	Value
Power (kW)	1.2
Power (HP)	1.6
H (m)	19.6-77
Liquid temperature range	from 0 °C to +40 °C
Pumped liquid	clean, free of solids and abrasives, non-aggressive
Maximum immersion depth	20 meters
Motor protection class	IP 68
Motor protection rating	F
Voltage (V)	single-phase	220/240
	three-phase	400

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 Materials

Impeller: technopolymer
Diffuser: technopolymer
Shaft with motor: technopolymer
Seal lubrication fluid: ESSO MARCOL 172 OIL

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 Dimensions and Weight

Dimensions (mm)	Weight (kg)
H	19.5
657	19.5

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 Technical Data

M3/h	0	1.2	2.5	3.6	4.8	6	7.2
l/min	0	20	40	60	80	100	120
H (m)	77	73.2	68	60	50	37	19.6

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 Performance Curve

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 Applications

Water supply systems in residential buildings
Irrigation systems for agriculture
Industrial processes requiring liquid transfer
Aquarium and pond water circulation

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 Benefits

High efficiency with low energy consumption
Durable construction for long-lasting use
Versatile operation across various liquid types
Reliable performance in deep immersion applications

Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 Price List

No.	Name	Price
1	Dab 1.6 HP 5-Inch Multistage Submersible Pump PULSAR50/80 Price	Contact us

Brand	Dab
Power (kW)	1.2
Power (HP)	1.6
Maximum Delivery Head (m)	77
Maximum Liquid Temperature (°C)	40
Maximum immersion depth (m)	20
Degree of Protection	IP68
Voltage (V)	220-240, 400
Impeller Material	Technopolymer
Applications	Aquarium water circulation, Irrigation, Water Transfer and Supply
