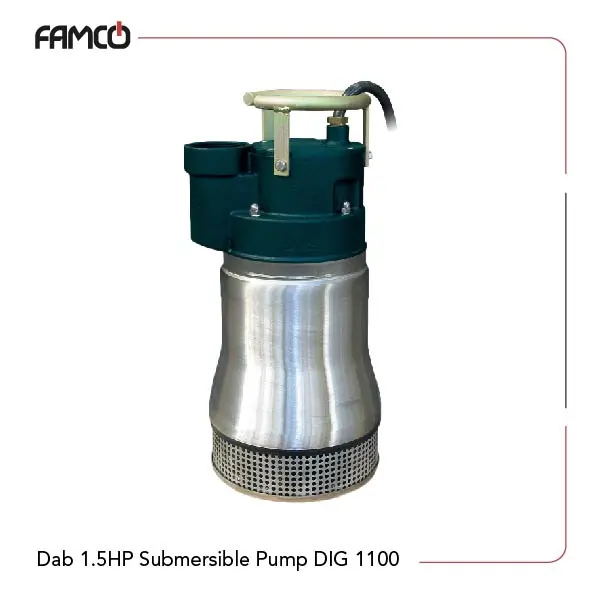

Dab 1.5HP Submersible Pump DIG 1100 Specifications
Dab 1.5HP submersible pump DIG 1100 is one of the few designed for versatile installation with both fixed and portable modes while set up in a vertical position. This Dab submersible pump handles a maximum immersion depth of 20 meters with the appropriate cable length. The motor inside this sturdy pump is protected with an IP 68 rating to make it dust-tight and withstand submersion in water. This product has an insulation class of F that operates safely under various conditions. Dab 1.5HP submersible pump DIG 1100 features two poles and passes solids through that measure up to 6 mm. It operates on a voltage range of 220-240V and a frequency of 50 Hz, which is suitable for standard electrical systems. The head range is adjustable from 3 to 11.3 meters to provide additional flexibility for different applications.
| Specification | Value |
| Installation | fixed or portable, vertical position |
| Maximum immersion depth | 20 meters (with cable of appropriate length) |
| Motor protection class | IP 68 |
| Insulation class | F |
| Number of poles | 2 |
| Free passage of solids | 6 mm |
| Voltage(V) | 220-240 |
| Frequency (Hz) | 50 |
| Head (m) | 3-11.3 |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
Dab 1.5HP Submersible Pump DIG 1100 Materials
- Handle: Chrome Steel
- Upper Cover: En Gjl 200 Cast Iron
- Rotor: Shaft Aisi 420
Motor Body: Aisi 304 - Mechanical Seal On Motor Side: Carbon/Alumina
- Mechanical Seal On Pump: Silicon Carbide/Silicon Carbide
- Impeller: Aisi Astm 532-80

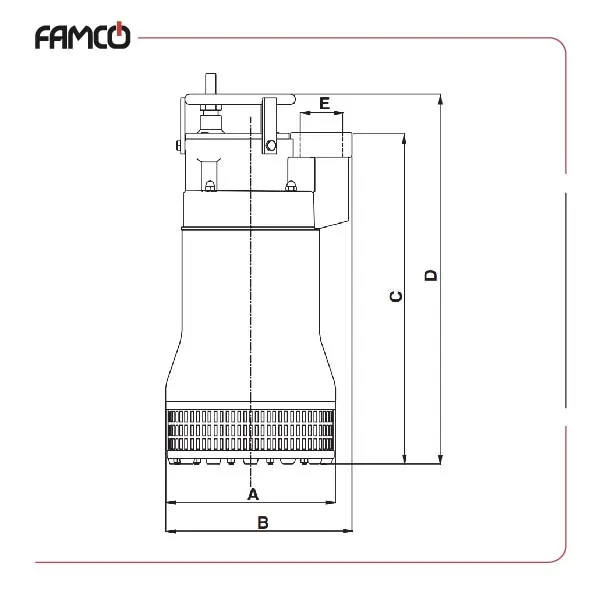

Dab 1.5HP Submersible Pump DIG 1100 Dimensions and Weight
| Dimensions (mm) | |
| A | 250 |
| B | 270 |
| C | 480 |
| D | 530 |
| E DNM | 2 1/2” – F |
| Weight (kg) | 34 |

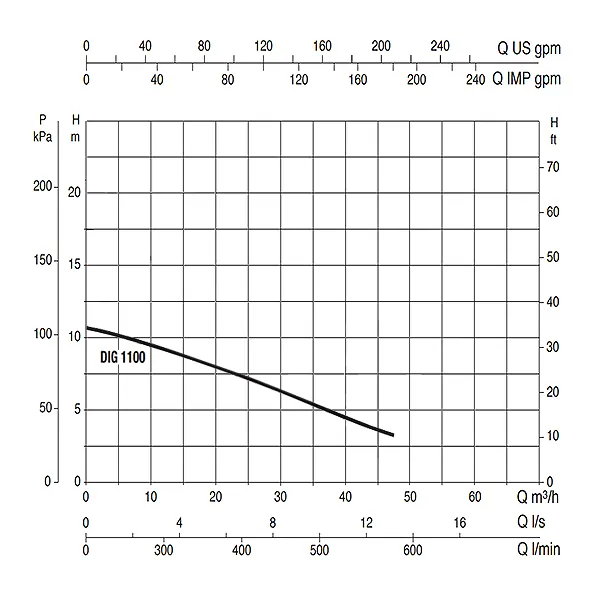

Dab 1.5HP Submersible Pump DIG 1100 Performance Data
| l/min | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| m3 /h | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| H (m) | 11.3 | 10.6 | 9.6 | 8.5 | 7.4 | 6.5 | 5.3 | 3.8 | 3.0 |
Dab 1.5HP Submersible Pump DIG 1100 Applications
- Water drainage in construction sites
- Irrigation systems for agriculture
- Flood control in residential areas
- Aquarium and pond water circulation
Dab 1.5HP Submersible Pump DIG 1100 Benefits
- Versatile installation options for different needs
- High durability with IP 68 protection
- Adjustable head height for various applications
- Efficient operation with solid passage capability
