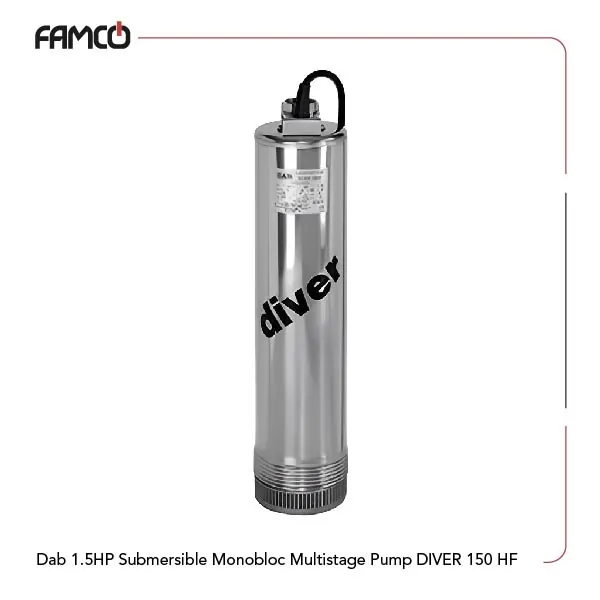

Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 HF Specifications
Dab 1.5HP submersible monobloc multistage pump DIVER 150 HF is designed for clean liquids that are free from solids and abrasives. It operates efficiently within a temperature range of 0 °C to +35 °C. The maximum immersion depth in this Dab borehole pump is 20 meters, making it suitable for various applications. The motor installed in this pump has an IP 68 protection class to increase durability in wet environments. This powerful Dab submersible pump can be placed inside wells, tanks, and cisterns in a vertical position. The standard voltage options include single-phase 230 V / 50 Hz and three-phase 400 V / 50 Hz. This sturdy pump features a reliable NBR 70 lip seal and a mechanical seal made of SiC/SiC, for enhanced protection. Both the diffuser and impeller are made from technopolymer, while the shaft with rotor is constructed from AISI 304 stainless steel, both lightweight and sturdy materials against corrosion. This solid pump has a power output of 1 kW (1.5 HP). Having these features all in one place, it achieves a head of 15 to 42 meters, which is required in a set of different pumping needs.
| Specification | Value | |
| Pumped liquid | clean, free of solids and abrasives, non-aggressive | |
| Liquid temperature range | from 0 °C to +35 °C | |
| Max. immersion depth | 20 m | |
| Motor protection class | IP 68 | |
| Motor protection rating | F | |
| Standard voltage | single-phase | 230 V / 50 Hz |
| three-phase | 400 V / 50 Hz | |
| Power (Kw) | 1 | |
| Power (HP) | 1.5 | |
| H (m) | 15-42 | |
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 HF Materials
- Lip seal: NBR 70
- Mechanical seal on the pump side: SiC/SiC
- Diffuser: technopolymer
- Impeller: technopolymer
- Shaft with rotor: AISI 304 Stainless Steel X5CrNi1810 UNI 10088-3
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 HF Dimensions and Weight
| Dimensions (mm) | ||
| Ø | 127 | |
| H | 523 | |
| Weight (kg) | 13 | |
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 HF Technical Data
| M3/h | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 |
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 |
| H (m) | 42 | 40 | 38 | 35 | 32 | 28 | 24 | 20 | 15 |

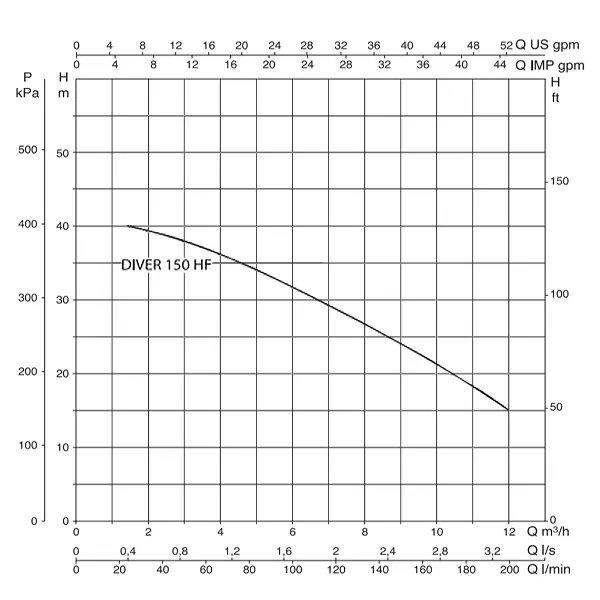

Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 HF Performance Curve
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 HF Applications
- Irrigation systems in agriculture
- Water supply in residential buildings
- Drainage in construction sites
- Cooling systems in industrial processes
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 HF Benefits
- Durable construction with stainless steel components
- Efficient operation within a wide temperature range
- Versatile installation options for various environments
- Low maintenance requirements due to high-quality seals
Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 HF Price List
| No. | Name | Price |
| 1 | Dab 1.5HP Submersible Monobloc Multistage Pump DIVER 150 HF Price | Contact us |
